Views: 222 Author: Shengda Publish Time: 2026-05-16 Origin: Site
Industrial grade HPMC and HEMC each offer distinct advantages for mortars, and the "right" cellulose ether depends on your mortar formulation, climate, and whether you use machine-application or manual troweling on site. From a practical, field-tested perspective, HPMC tends to dominate in machine-applied systems for its robust water retention and workability window, while HEMC often excels in hand-applied mortars and hot climates thanks to its better heat resistance and open time control. [tecigmee]

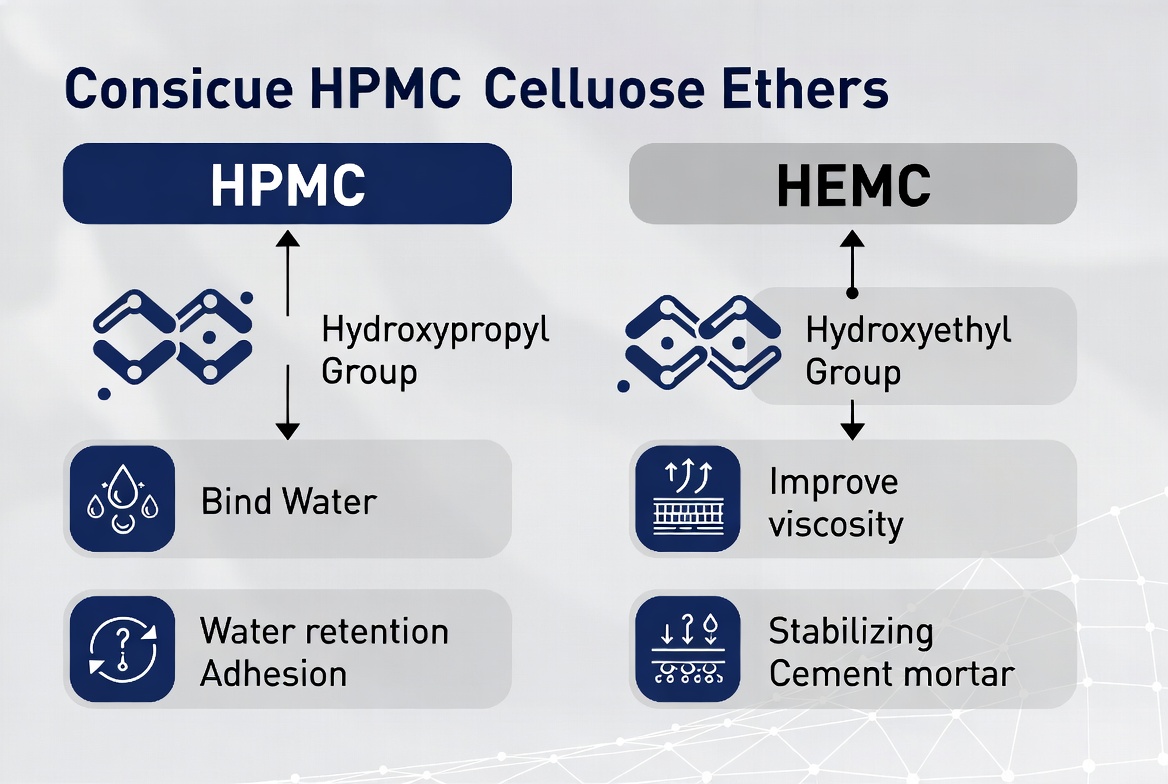

Cellulose ethers such as Hydroxypropyl Methyl Cellulose (HPMC) and Hydroxyethyl Methyl Cellulose (HEMC) are non-ionic, water-soluble polymers derived from natural cellulose. They are produced by treating purified cellulose (often cotton or wood pulp) through alkalization and etherification, adding functional groups like hydroxypropyl or hydroxyethyl to the cellulose backbone. [tshuaxue]
In cement- and gypsum-based dry-mix mortars, these polymers are critical rheology modifiers, offering water retention, thickening, adhesion improvement, and anti-sag properties. For a manufacturer like Shandong Shengda New Material Co., Ltd., building-grade and daily-chemical-grade cellulose ethers are tailored to applications such as tile adhesives, skim coats, self-leveling compounds, and putties across global markets. [chinacoatonline]
Industrial grade HPMC is a hydroxypropyl-modified methyl cellulose ether, designed for construction and industrial formulations rather than pharmaceutical or food use. The hydroxypropyl groups increase flexibility and improve solubility, giving HPMC strong water retention and a characteristic "creamy" workability in mortars. [flbook.com]
In construction, industrial HPMC is widely used in: tile adhesives, EIFS/ETICS mortars, cement-based renders, gypsum plasters, self-leveling underlayments, and repair mortars. Its industrial-grade specification controls viscosity, substitution level, and particle size to ensure consistent performance in high-shear mixers and mortar-spraying machines. [chinacoatonline]
Industrial grade HEMC (also called MHEC or Hydroxyethyl Methyl Cellulose) is a hydroxyethyl-modified methyl cellulose ether with similar backbone chemistry but different substituents from HPMC. Hydroxyethyl groups enhance salt tolerance and often improve performance in high-temperature and high-alkali environments, while maintaining excellent water retention. [chemicalbook]
HEMC is used extensively in cement renders, plastering mortars, putty/skim coat, tile adhesives, and dry-mix gypsum systems, especially where higher heat resistance, improved open time, and smoother troweling are required. Many suppliers position HEMC as a cost-effective alternative or complement to HPMC in building mortars, enabling formulators to fine-tune workability and setting behavior. [tecigmee]

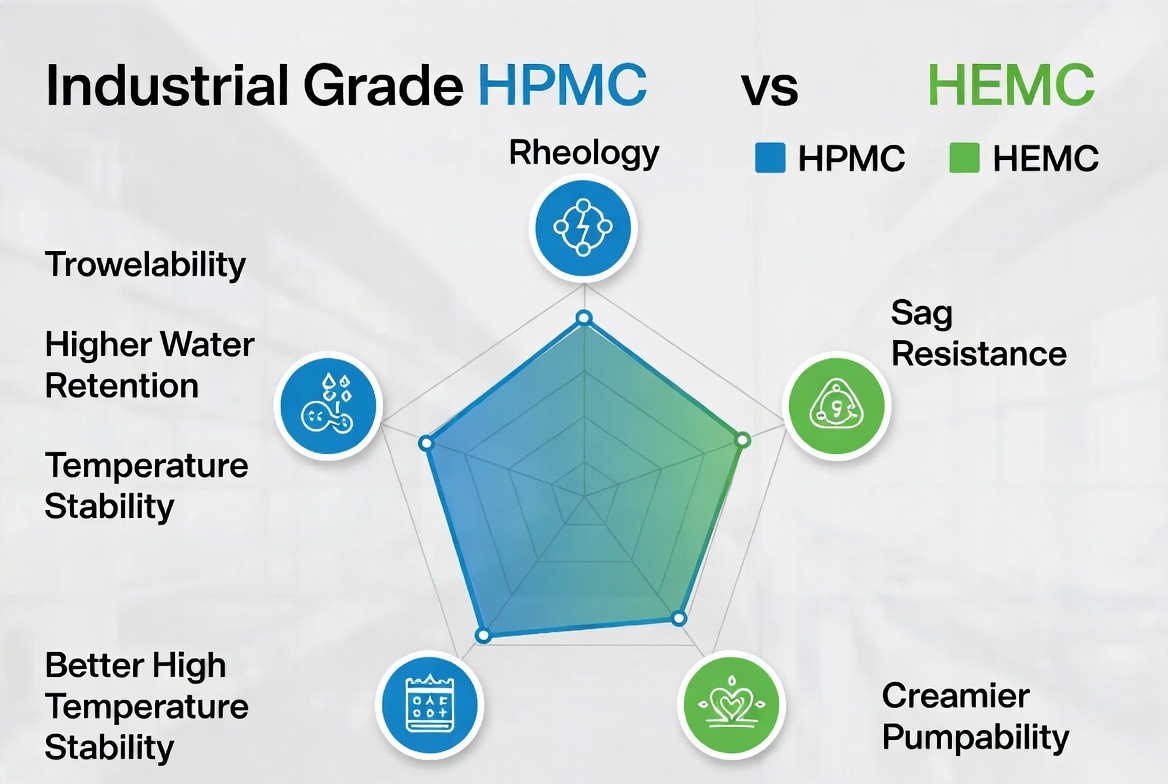

From both a formulation and jobsite perspective, the most important differences between HPMC and HEMC can be grouped into water retention, rheology, and temperature behavior. [flbook.com]
1. Water retention and bleeding
- Both HPMC and HEMC provide high water retention, critical for cement hydration and adhesion strength in thin-layer mortars. [tecigmee]
- HPMC often shows slightly stronger water-retaining power, especially in high-cement, thin-bed tile adhesives, helping reduce early drying and shrinkage. [flbook.com]
- HEMC can give a good balance between retention and reduced water demand, which is attractive in hand-applied renders and putties. [flbook.com]
2. Rheology and workability
- HPMC tends to create a more elastic, creamy mortar, improving pumpability and sprayability in machine-applied systems. [tecigmee]
- HEMC usually delivers a smoother, more lubricating feel, which many plasterers prefer for manual troweling and finishing. [flbook.com]
- In high shear, HPMC often offers better sag resistance, while HEMC can give finer trowel marks and surface finish. [tecigmee]
3. Temperature and setting behavior
- The gel temperature of HPMC makes it sensitive to very high temperatures, which can influence open time and wetting in hot climates. [tecigmee]
- HEMC generally exhibits better heat resistance and more stable open time under hot and dry conditions, helping applicators keep a workable surface longer. [chemicalbook]
- In cold conditions, both require careful dosage and formulation to maintain proper hydration and setting. [tecigmee]
Machine-applied mortars (such as spray plasters, pumpable renders, and large-scale tile setting) impose different stresses on the mortar than hand-applied systems. They require consistent viscosity under shear, low clogging risk, and long-enough open time to allow leveling after spray application. [chinacoatonline]
Hand-applied mortars (such as trowel-applied plaster, bricklaying mortar, or patch repair) rely more on trowel feel, edge retention on the tool, and ease of reworking during the open time. For many contractors, the tactile experience—how the mortar "sits" on the trowel—is just as important as laboratory performance data. [flbook.com]
Below is a concise overview comparing industrial HPMC and HEMC for machine-applied and hand-applied mortars. [chinacoatonline]
| Aspect | Industrial HPMC | Industrial HEMC |
|---|---|---|
| Chemical substituents | Methyl + hydroxypropyl groups for enhanced flexibility and water retention. | Methyl + hydroxyethyl groups for improved salt tolerance and heat resistance. |
| Water retention | Very high; ideal for thin-bed tile adhesives and high-cement mortars. | High; slightly lower water demand in many formulations, good for renders and putties. |
| Rheology | Creamy, elastic paste, excellent pumpability and sprayability. | Smooth, lubricating feel, very good trowelability and surface finish. (flbook.com) |
| Sag resistance | Strong sag resistance in vertical applications, especially with higher viscosity grades. | Good sag resistance; can be tuned via viscosity and dosage. (flbook.com) |
| Temperature stability | Sensitive to very high temperature; open time may shorten in hot climates. | Better high-temperature behavior; more stable open time in hot/dry conditions. |
| Preferred in machine-applied mortars | Frequently the primary choice due to pumpability and stable viscosity under shear. (flbook.com) | Often used as a partial replacement or secondary option in specific climates or formulations. (flbook.com) |
| Preferred in hand-applied mortars | Used where high strength and water retention are critical. | Widely favored by plasterers for smooth trowel feel and finishing quality. (flbook.com) |
Drawing on typical industry practice and bench-to-field trials, a formulation engineer will usually start with HPMC-based reference formulations for tile adhesives and machine-applied plasters, then evaluate HEMC variants to fine-tune trowel feel and open time. In many global projects, especially in regions with strong seasonal variation, dual portfolios (HPMC + HEMC) allow producers to optimize formulations for local climate, cement type, and application method. [chinacoatonline]
As a manufacturer, it is also common to collaborate closely with large contractors and OEM machine suppliers to run field tests on spray rigs and pump systems, adjusting cellulose ether viscosity, substitution level, and dosage based on clogging behavior, rebound rate, and finish quality. This iterative approach ensures that paper specifications translate into robust jobsite performance. [chinacoatonline]
For machine-applied mortars (spray plasters, pumped renders, industrial-scale tile adhesives), you can use a structured evaluation approach:
1. Define performance targets
- Required open time and correction time
- Maximum allowable sag and slump
- Pump distance, hose length, and nozzle specifications
2. Start with an HPMC-based formulation
- Select an industrial HPMC grade with appropriate viscosity (e.g., 40,000–80,000 mPa·s) tailored to your mortar type. [flbook.com]
- Adjust dosage to achieve a pumpable consistency without segregation.
3. Evaluate in real machine conditions
- Test on actual spray equipment or pumps under realistic jobsite conditions. [chinacoatonline]
- Observe clogging, spray pattern, rebound, and surface leveling behavior.
4. Refine with HEMC if necessary
- In hot climates or for smoother finishing requirements, trial partial replacement of HPMC with HEMC, or a hybrid HPMC–HEMC system. [tecigmee]
- Focus on improving open time, reducing stickiness on the nozzle, and enhancing trowel finish during leveling.
5. Lock in specification and QA controls
- Once a satisfactory system is found, specify cellulose ether grade, viscosity, substitution, particle size, and dosage range in your product specification. [flbook.com]
- Implement regular QC testing of viscosity and moisture content in both raw materials and finished dry-mix mortars.
For hand-applied mortars such as plaster, bricklaying mortar, and finishing putties, the applicator's experience becomes central to the decision.
1. Listen to the applicators
- Gather feedback on trowel feel, stickiness, edge retention, and ease of reworking.
- Identify whether users prefer a "creamier" or "lighter, smoother" mortar.
2. Start with HEMC for plaster and putty
- Many plastering and skim coat formulations use HEMC as a first choice due to its smooth troweling behavior and better heat resistance. [tecigmee]
- Adjust dosage to avoid excessive stickiness and maintain easy sanding or reworking after initial set.
3. Consider HPMC for high-demand applications
- For thin-layer cementitious systems and areas with strong water loss (porous substrates, dry climates), HPMC may be preferred for superior water retention. [tecigmee]
- Use HPMC when adhesion and flexural strength are critical or when the same product must also work with simple spray equipment.
4. Blend strategies
- In some projects, a blend of HEMC and HPMC is used to combine smooth finishing (HEMC) and high water retention/strength (HPMC). [flbook.com]
- Fine-tune with additional additives such as starch ethers, redispersible polymer powder (RDP), or air-entraining agents as needed. [flbook.com]
In real-world projects, climate and substrate often decide whether HPMC or HEMC is the better main cellulose ether.
- Hot, dry climates
- HEMC's better high-temperature behavior and stable open time are especially valuable when substrates are hot and ambient humidity is low. [chemicalbook]
- This helps avoid premature skin formation and improves tile wetting and bond.
- Cool or moderate climates
- Both HPMC and HEMC perform well, but many producers standardize on HPMC for machine-applied mortars and HEMC or blends for hand-applied systems. [tecigmee]
- Highly absorbent substrates
- When substrates such as aerated concrete or highly porous bricks draw water rapidly from the mortar, HPMC's very strong water retention can be advantageous. [tecigmee]
- Dense or low-absorption substrates
- For dense concrete or existing tiles, HEMC's balanced water retention and good wetting can support strong adhesion while maintaining workable consistency. [flbook.com]
A specialized cellulose ether manufacturer such as Shandong Shengda New Material Co., Ltd. typically offers application-specific HPMC and HEMC grades, tailored to building and daily chemical markets. This includes grades optimized for tile adhesives, ETICS/EIFS, self-leveling screeds, interior and exterior putties, and gypsum plasters, backed by technical support and lab testing. [chinacoatonline]
Global customers benefit when the supplier not only delivers consistent product quality but also provides formulation guidance, comparative testing, and local field support—helping contractors transition from manual to mechanized application while maintaining or improving jobsite performance. [chinacoatonline]
Choosing between industrial grade HPMC and HEMC for machine- or hand-applied mortars should never be guesswork; it should be data-driven and application-specific. If you are optimizing a new dry-mix mortar or upgrading from manual to mechanized application, partnering with a dedicated cellulose ether producer can significantly reduce your trial-and-error time. [flbook.com]
If you need a tailored recommendation for your specific mortar system, climate, and application method, contact Shandong Shengda's technical team with your formulation details and jobsite conditions to receive a customized HPMC/HEMC solution and trial samples. [chinacoatonline]
In many cases, partial or full replacement is possible, but you must re-validate open time, slip resistance, and adhesion according to standards such as EN 12004 or local equivalents. Some formulations may require a blend of HPMC and HEMC to balance water retention and workability. [tecigmee]
Industrial HPMC is often preferred for spray plasters due to its excellent pumpability, sag resistance, and stable viscosity under high shear, though HEMC or blends may be used in hot climates or specific equipment setups. [chinacoatonline]
High viscosity HPMC or excessive dosage can cause sticky, "stringy" mortars; this can be mitigated by optimizing dosage, adjusting viscosity grade, or incorporating HEMC or other rheology modifiers. [flbook.com]
Cost comparisons depend on supplier, grade, and required dosage, but in some markets HEMC is used as a cost-effective alternative or complement, particularly in renders and putties where extreme water retention is not required. [tecigmee]
Viscosity selection should be based on mortar type, thickness, application method, and desired rheology; suppliers typically offer guidance and recommend specific ranges (for example low- to mid-viscosity for self-leveling, higher viscosity for tile adhesives and plasters). [flbook.com]
1. "Producing Hydroxypropyl Methyl Cellulose (HPMC), Hydroxyethyl Methyl Cellulose (HEMC)" – ChinaCoat Online exhibitor information for cellulose ether manufacturers (including Shandong-based producers). <https://www.chinacoatonline.net/ExpoHall/Preview/40D98A86-CD12-42B6-BAD2-AFE9C53F5822> [chinacoatonline]
2. "纤维素醚类型该如何选择？" – Technical article discussing MC, HEMC, HPMC types and selection in cement-based materials. <https://www.tecigmee.net/newsinfo/8555532.html> [tecigmee]
3. "羟丙基甲基纤维素、羟乙基甲基纤维素介绍" – Background on cellulose ether chemistry and substitution differences. <http://www.tshuaxue.com/xwsm/12.html> [tshuaxue]
4. "羟乙基甲基纤维素的制备" – Explanation of HEMC production process and applications in mortars and other fields. <https://www.chemicalbook.com/NewsInfo_63480.htm> [chemicalbook]
5. "Catalog – HPMC HEMC HEC – Shandong Zhonghui Polymer Materials Co., Ltd." – Application-focused catalog of building-grade cellulose ethers. <https://flbook.com.cn/v/Hel6680P3W> [flbook.com]
6. "Manufacturing cellulose ether (HPMC, HEMC, HEC) and VAE re-dispersible polymer powder" – General overview of cellulose ether production and applications in dry-mix mortars. <https://www.chinacoatonline.net/ExpoHall/Preview/91e22817-67fc-4e38-b6f2-05b1db4d368f> [chinacoatonline]
