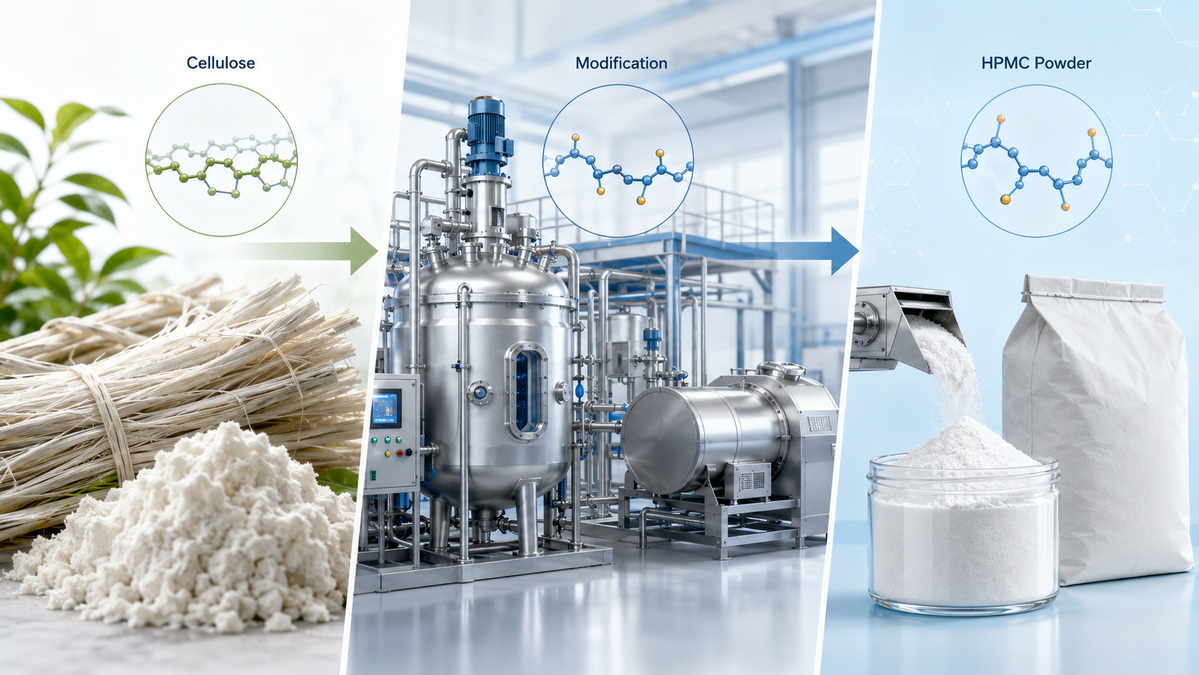

Hydroxypropyl Methyl Cellulose, or HPMC, is a semi-synthetic cellulose ether derived from purified cellulose. It is widely used as a thickener, water-retention agent, binder, film former, stabilizer, and emulsifier in construction materials, personal care products, food systems, and pharmaceutical formulations.
HPMC is valued because it can improve workability, control consistency, and support stable performance across many formulations. Its final behavior depends heavily on the quality of raw materials and the precision of the manufacturing process.

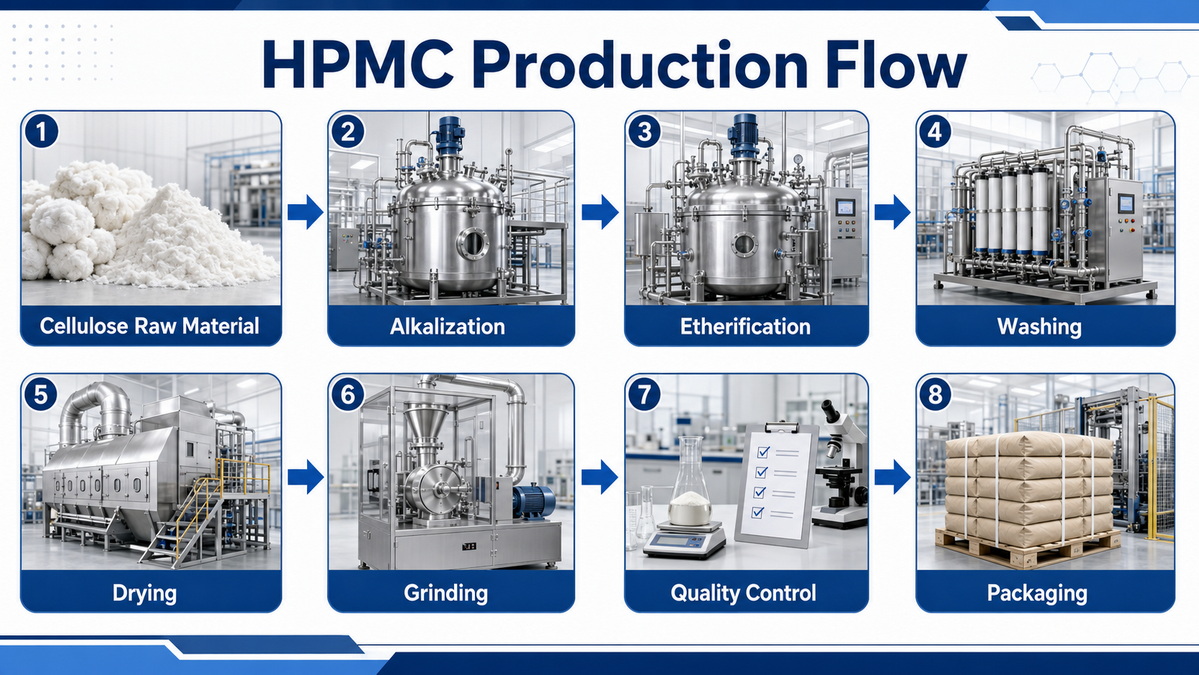

The production flow of HPMC generally includes the following stages:
1. Raw material selection and preparation.
2. Alkalization of cellulose.
3. Etherification reaction.
4. Neutralization, washing, and purification.
5. Drying.
6. Grinding and sieving.
7. Quality control.
8. Packaging and storage.
Each step plays an important role in determining the final product's consistency, performance, and suitability for different applications.
The first step in HPMC manufacturing is choosing high-purity cellulose, usually from wood pulp or cotton linters. The purity, moisture level, and fiber consistency of the cellulose directly affect reaction efficiency and the quality of the final powder.
Before production begins, the raw material is carefully inspected and prepared according to the intended product grade. Stable raw materials help support stable batch performance.
In the alkalization stage, cellulose is treated with sodium hydroxide. This process swells the fibers and activates the hydroxyl groups, making the cellulose more reactive for the next chemical reaction.
This step is essential because it affects how evenly the etherification agents can react with the cellulose. If alkalization is not uniform, the final HPMC may show unstable viscosity, poor solubility, or inconsistent application behavior.
Etherification is the core step in HPMC production. During this stage, the alkalized cellulose reacts with methyl chloride and propylene oxide, which introduce methyl and hydroxypropyl groups into the cellulose structure.
This reaction gives HPMC its functional characteristics, including:
- Water retention.
- Thickening ability.
- Film-forming performance.
- Thermal gel behavior.
- Improved surface activity.
The result depends on reaction conditions such as temperature, pressure, time, solvent system, and reagent ratio. Careful process control is necessary to achieve consistent substitution and reliable product quality.
After etherification, the crude product still contains residual chemicals, salts, and by-products. It must be neutralized and washed thoroughly to remove these impurities.
Purification is important for both performance and safety. Well-washed HPMC generally has better purity, more stable appearance, and improved suitability for construction-grade, daily chemical-grade, food-grade, or pharmaceutical-grade applications.
After washing, the wet material is dried to a controlled moisture level. Common drying methods may include fluidized bed drying, airflow drying, vacuum drying, or other industrial drying systems.
Drying affects more than moisture removal. It also influences storage stability, powder flowability, milling efficiency, and final product handling. Over-drying or under-drying can both create problems in the next steps of production or in downstream use.
The dried material is then ground into fine powder and sieved to achieve the required particle size distribution. This step is important because particle size affects dispersion speed, blending behavior, and end-use consistency.
Different applications require different powder characteristics. For example, construction applications often need strong water retention and stable mixing behavior, while daily chemical products may require smoother dispersion and more controlled texture.
A professional HPMC manufacturer will carry out quality control at multiple stages before shipment. Common testing items include:
- Viscosity.
- Moisture content.
- Particle size.
- Purity.
- pH.
- Ash content.
- Degree of substitution.
These indicators help determine whether the product can perform consistently in real applications. Batch-to-batch stability is especially important for export customers and industrial formulators.
HPMC is widely used in both construction and daily chemical products.
In tile adhesive, wall putty, skim coat, self-leveling compounds, and cement-based mortars, HPMC helps improve:
- Water retention.
- Workability.
- Open time.
- Sag resistance.
- Adhesion support.
These properties are essential for achieving stable performance during application and curing.
In detergents, shampoos, facial cleansers, and other personal care systems, HPMC helps provide:
- Thickening.
- Stabilization.
- Suspension.
- Texture improvement.
- Film-forming support.
For these uses, purity, clarity, and consistency are especially important.
When evaluating an HPMC supplier, buyers should look beyond the product name and viscosity level. Important questions include:
- What raw material source is used?
- How are alkalization and etherification controlled?
- What washing and purification method is used?
- How is viscosity tested?
- Can the supplier provide batch consistency data?
- Are different grades available for different applications?
These points help buyers identify whether a supplier has real manufacturing strength or only basic trading capability.
A stable production system can help improve final product quality. Key practices include:
- Using high-purity cellulose feedstock.
- Controlling reaction temperature and time precisely.
- Removing impurities thoroughly during washing.
- Maintaining proper drying conditions.
- Controlling particle size during milling.
- Matching the grade to the target application.
These measures help support product consistency, storage stability, and application reliability.
The HPMC production process and flow determine the quality and performance of the final powder. From raw material selection to packaging, each stage affects viscosity, purity, dispersibility, and application results.
For customers seeking a dependable HPMC supplier for construction and daily chemical use, a manufacturer with stable process control and professional quality management can make a meaningful difference in product performance.
HPMC is made from purified cellulose, usually sourced from wood pulp or cotton linters.
The key reaction is etherification, where methyl chloride and propylene oxide are used to modify the cellulose structure.
Washing removes residual chemicals, salts, and by-products, improving purity and product stability.
Particle size affects dispersion, blending, and the speed at which the powder works in a formulation.
Yes. It is widely used in construction materials, detergents, shampoos, cleansers, and other formulations.
Buyers should ask about raw materials, process control, quality testing, batch stability, and application support.
