close
Choose Your Site
Global
Social Media
Views: 222 Author: Shengda Publish Time: 2026-06-22 Origin: Site
Content Menu
● What Is HPMC And Why Dissolution Matters
● Factor 1: Polymer Viscosity Grade And Molecular Weight
● Factor 2: Water Temperature And Thermal Gelation Behavior
● Factor 3: Stirring Speed, Shear, And Mixing Method
● Factor 4: Particle Size, Pre‑Dispersion, And Addition Method
>> Particle size and its impact
>> Preventing agglomeration during addition
● Factor 5: Water And Solvent Quality (Hardness, Ions, And Media)
● How To Optimize HPMC Dissolution Step‑By‑Step (Practical SOP)
● Real‑World Use Cases In Construction And Personal Care
>> Construction‑grade HPMC: tile adhesives and dry‑mix mortars
>> Daily‑chemical‑grade HPMC: shampoos, lotions, and detergents
● Latest Research And Innovation Around HPMC Dissolution
● Troubleshooting: Common Dissolution Problems And Corrective Actions
● When To Consult Your HPMC Supplier
● FAQ
Hydroxypropyl Methyl Cellulose (HPMC) dissolution looks simple—add powder to water and stir—but anyone who has mixed tile adhesive, skim coat, or shampoo base knows how easily it can go wrong. Lumps, fisheyes, undissolved gels, and inconsistent viscosity are usually not product defects, but process problems. In this in‑depth guide, I will walk you through the key factors that control HPMC dissolution and share practical best practices from real construction and personal‑care applications, so your formulations are stable, repeatable, and efficient. [pdfs.semanticscholar]
HPMC is a non‑ionic cellulose ether widely used as a thickener, water‑retention agent, stabilizer, and film former in dry‑mixed mortars, coatings, pharmaceuticals, and personal care products. In both construction‐grade and daily‑chemical‑grade formulations, its performance fully depends on how well it is dispersed and dissolved. [kimacellulose]
From an application perspective:
- In cementitious mortars, poor HPMC dissolution leads to inconsistent water retention, troweling drag, and unstable open time. [shengdahpmc]
- In shampoos, lotions, and detergents, incomplete dissolution shows up as micro‑gels, phase instability, and inconsistent viscosity over time. [kimacellulose]

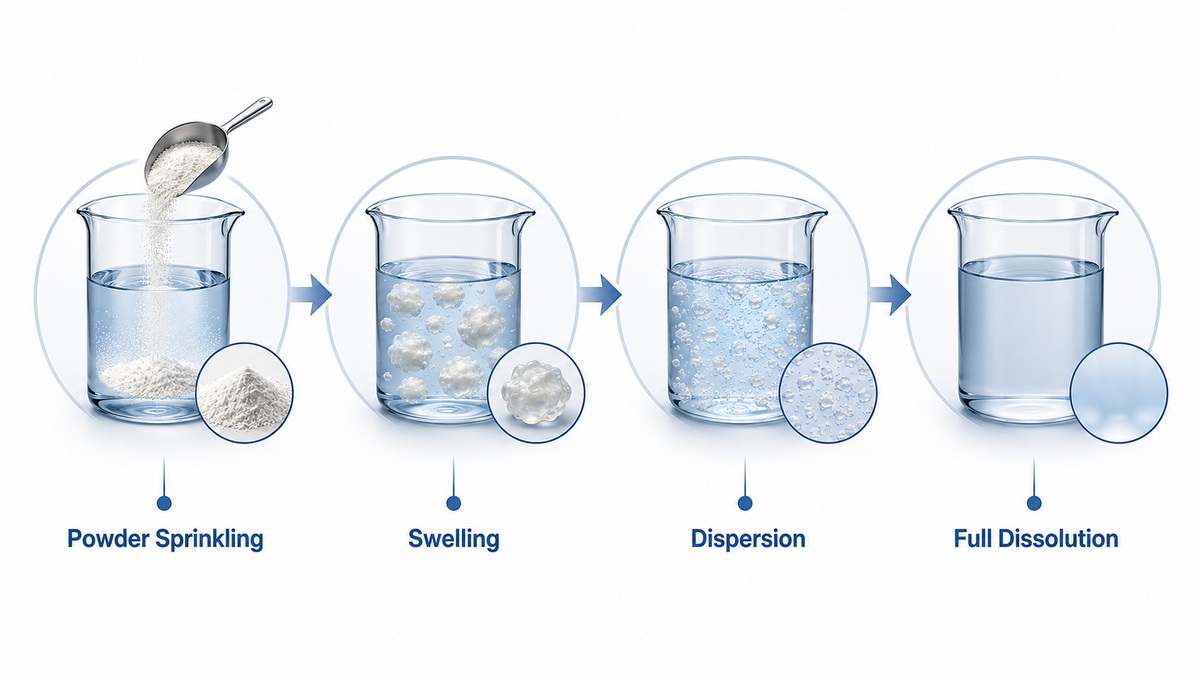

Most industrial HPMC grades require an initial swelling and dispersion step, followed by full dissolution to form a stable colloidal solution. Typical dissolution time ranges from about 15 minutes to several hours, depending on grade and process. [pdfs.semanticscholar]

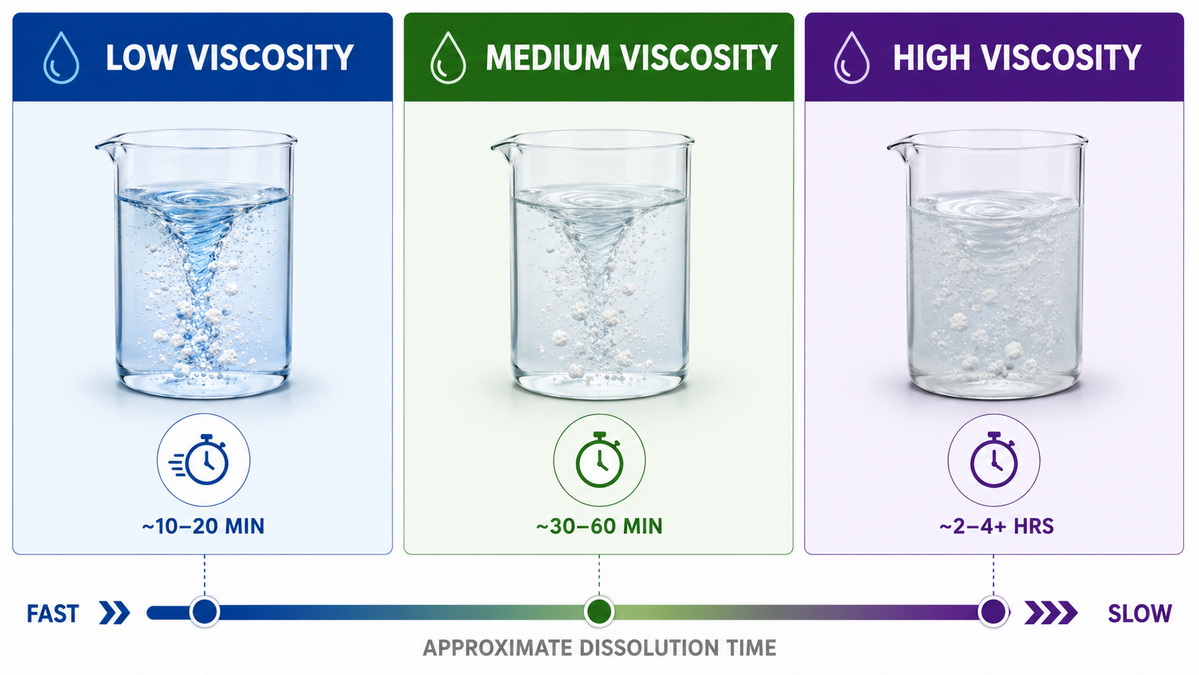

The first and often most overlooked variable is the viscosity grade (and related molecular weight) of HPMC.
- Higher viscosity grades have higher molecular weight, stronger entanglement, and usually need more time and energy to dissolve. [kimachemical]
- Lower viscosity grades wet, swell, and dissolve significantly faster under the same conditions. [kimachemical]
For example, a low‑viscosity HPMC around 50 cps can typically dissolve in roughly 15 minutes under proper stirring, while higher viscosity grades in the thousands of cps may require substantially longer mixing and hydration times. In controlled studies of hypromellose matrices, higher molecular weight materials showed greater swelling and slower erosion, which directly translates to slower overall dissolution behavior. [sciencedirect]
Expert tip (from field experience):
- For rapid‑mixing systems (e.g., ready‑to‑use liquid detergents, some personal care bases), select a lower viscosity grade to minimize lumping risk.
- For high‑performance mortars where water retention and workability are critical, higher viscosity grades are beneficial, but only if you have enough mixing time and shear to dissolve them fully. [qianhaochem]
Temperature has a non‑linear effect on HPMC dissolution because of the polymer's thermal gelation behavior.
Key points:
- In cold water, HPMC rapidly absorbs water and swells but dissolves more slowly; viscosity develops gradually as chains untangle. [pdfs.semanticscholar]
- In hot water above about 60 °C, HPMC tends to form a temporarily insoluble, gel‑like state, which can trap dry cores and increase lumping risk if added directly. [kimachemical]
Industrial practice therefore often uses a "cold–hot double dissolution" or "cold dispersion then heat‑up" process:
1. Slowly disperse HPMC into cold or room‑temperature water, ensuring good wetting and minimal agglomeration.
2. After uniform dispersion and initial swelling, gradually heat to around 40–60 °C to accelerate chain relaxation and complete dissolution. [pdfs.semanticscholar]
This approach is widely recommended in technical literature because it shortens dissolution time while avoiding thermal gel lumps caused by adding HPMC directly into hot water. [kimachemical]

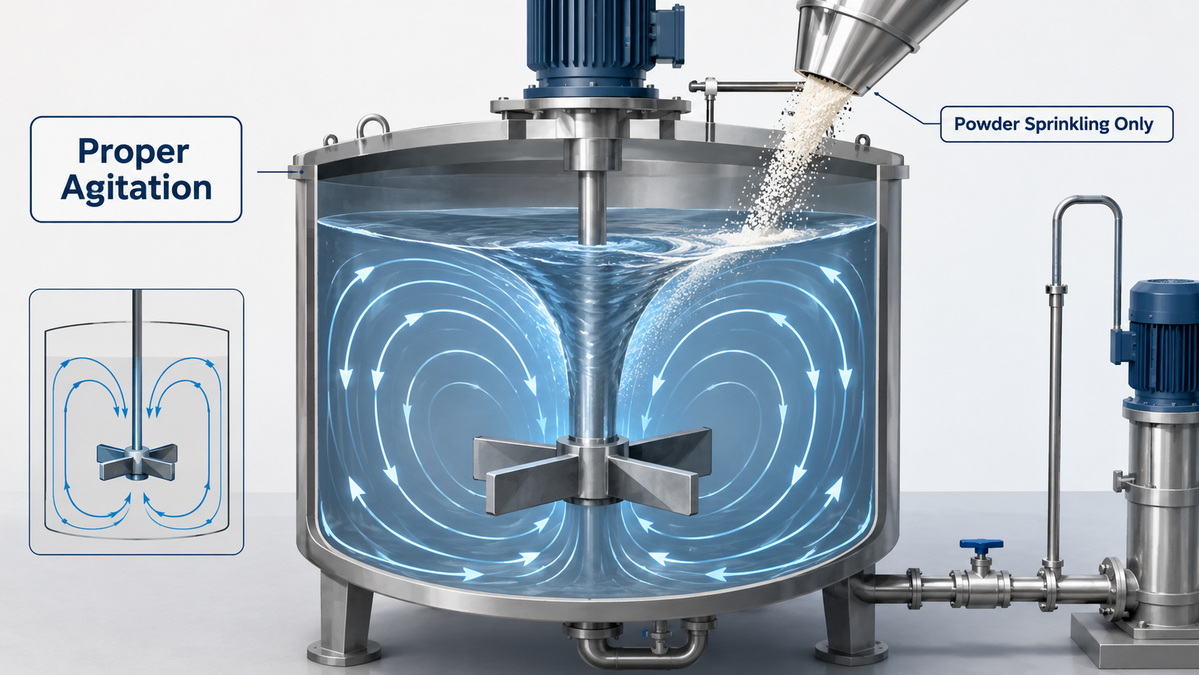

Even with the right grade and temperature, hydrodynamics in the mixing vessel strongly influence dissolution quality.
Important aspects:
- Stirring speed and flow pattern must be sufficient to keep particles suspended and prevent local over‑concentration that leads to lumping. [kimachemical]
- High‑shear equipment (e.g., high‑speed dispersers, homogenizers) can dramatically shorten dissolution time and reduce fisheyes, especially for high‑viscosity grades or higher solids content. [kimachemical]
- Inadequate agitation can create "dead zones" where HPMC swells into large gels that never fully hydrate, causing an apparently uniform but partially undissolved solution. [pdfs.semanticscholar]
Research on hypromellose matrix systems has shown that higher agitation rates increase erosion and dissolution by enhancing medium penetration and polymer chain disentanglement. In practical terms, this means that a formulation that dissolves cleanly in a lab beaker with a magnetic stirrer may require different impeller design and speed in a 5‑ton batch tank. [pubmed.ncbi.nlm.nih]
Process checklist:
- Use a vortex‑forming speed during powder addition to help rapid wetting.
- Maintain agitation for sufficient hold time after all powder is added; do not stop stirring as soon as all HPMC appears dispersed.
- For viscous systems, consider a two‑stage mixing: high shear during addition, then moderate shear during hydration.
How you add HPMC is as important as what grade you choose.
- Smaller particles dissolve faster because they present more surface area to water and disperse more uniformly. [kimachemical]
- Fine‑particle HPMC is preferred in applications where rapid dissolution is essential (e.g., instant powders, certain pharmaceutical and personal care systems). [pdfs.semanticscholar]
Common issues:
- "Fish‑eyes" form when the outer shell of an HPMC agglomerate swells quickly, sealing in a dry core that is slow to hydrate. [kimachemical]
- Dumping powder too fast into stagnant or very hot water dramatically increases this risk.
Best practice strategies:
- Slow sprinkling: Gradually sprinkle HPMC into a well‑agitated vortex rather than dumping it in one shot. [kimachemical]
- Pre‑mix in other dry ingredients: In dry‑mix mortars, mixing HPMC with cement, sand, or other powders ensures much more even dispersion once water is added. [shengdahpmc]
- Pre‑wet in non‑solvent phase: For some liquid systems, briefly pre‑wetting HPMC with a water‑miscible non‑solvent (e.g., certain glycols or surfactant blends) can improve dispersion before final dilution. [kimachemical]
Although HPMC is mainly used as a water‑soluble polymer, the nature of the dissolution medium strongly affects its behavior.
Key influences:
- Water hardness and ions: Hard water with high levels of calcium or magnesium can promote gel lump formation and slow dissolution compared with soft water. [kimachemical]
- Ionic strength and composition: Studies on hypromellose matrices show that higher ionic strength and certain salts can change swelling and erosion rates, which indirectly change dissolution behavior. [sciencedirect]
- Organic co‑solvents: HPMC can also dissolve in some water–organic solvent mixtures (e.g., ethanol or propylene glycol systems), but dissolution is typically slower and more sensitive to solvent ratio. [pdfs.semanticscholar]
For construction‑grade production where water comes from municipal or well sources, controlling hardness or adding suitable sequestering agents can improve batch‑to‑batch reproducibility. In cosmetics or household products, deionized water is standard to minimize variability in rheology and clarity. [kimacellulose]
Based on industry practice and published dissolution studies, the following standard operating procedure (SOP) is widely applicable to both construction and daily‑chemical systems. [kimachemical]
1. Define your target
- Confirm final viscosity, solids content, and application (e.g., tile adhesive, self‑leveling, shampoo, lotion).
- Select a matching viscosity grade and substitution type consistent with your performance targets. [linkedin]
2. Prepare the dissolution medium
- Use clean, preferably soft or deionized water at controlled starting temperature (often 15–25 °C). [kimachemical]
- Charge the tank and start agitation, creating a stable vortex.
3. Add HPMC correctly
- Sprinkle HPMC slowly and evenly into the vortex; avoid dumping large bags directly into stagnant water. [pdfs.semanticscholar]
- If working with dry‑mix mortars, ensure HPMC is uniformly blended with all powders before adding water. [shengdahpmc]
4. Control shear and hydration time
- Maintain moderate to high shear during addition; avoid dead zones along the tank wall or bottom. [sciencedirect]
- Continue mixing for 15–60 minutes or more, depending on grade and solids, even after visible lumps disappear. [pdfs.semanticscholar]
5. Optional heating stage
- After complete dispersion at low temperature, gradually raise temperature to about 40–60 °C to shorten final dissolution time, if allowed by formulation. [kimachemical]
- Avoid exceeding gel point ranges where permanent gels or degradation could occur.
6. Quality checks
- Visually check for fisheyes or undissolved particles.
- Measure viscosity and, when relevant, pH and conductivity; compare with your established reference range to confirm reproducibility. [kimacellulose]
In modern cementitious tile adhesives and external wall insulation systems, HPMC plays a central role in water retention, workability, slip resistance, and open time. Case studies have shown that higher viscosity grades such as K100M can deliver superior adhesion and durability when properly dissolved and dispersed. [linkedin]
From field feedback:
- When HPMC is under‑dissolved, installers report inconsistent troweling feel between batches, premature skinning, and uneven bond strength.
- When dissolution and dispersion are optimized, contractors notice longer open time, smoother trowelability, and reduced sag even on vertical substrates. [qianhaochem]
In shampoos, shower gels, lotions, and toothpastes, HPMC acts as a thickener, stabilizer, emulsifier, and film former. Formulators aim for: [linkedin]
- Fast dissolution with minimal air entrainment, to avoid foam and micro‑bubbles.
- Stable viscosity over time and temperature cycles.
Where dissolution is not optimized, typical complaints include visible gels in finished products, slow viscosity build, and batch‑to‑batch inconsistency. Switching to appropriate grades, controlling particle size, and adopting staged addition and high‑shear pre‑dispersion can significantly improve clarity and texture based on industry practice and technical reports. [kimacellulose]
Recent research and industrial development around HPMC and related cellulose ethers has focused on more predictable dissolution and release profiles in complex environments:
- In pharmaceutical capsules, thermally gelled HPMC capsule shells have shown more consistent and media‑independent dissolution profiles, which helps ensure robust drug release across varying gastric conditions. [drugdiscoverytrends]
- Studies of HPMC and related polymers in amorphous solid dispersions highlight their role not just in dissolution, but in stabilizing poorly soluble drugs, where swelling, erosion, and dissolution kinetics are tightly coupled. [pmc.ncbi.nlm.nih]
In construction and personal care, the same underlying science—control of swelling, erosion, and hydration—guides the development of new grades with tailored particle size, substitution patterns, and gel temperature, aiming to make dissolution more robust to operator variation and local water quality. [shengdahpmc]
| Symptom | Likely cause | Corrective action |
|---|---|---|
| Persistent fisheye gels | Fast dumping, high water temperature, low shear | Switch to slow sprinkling, use cooler water, increase stirring speed or shear. (pdfs.semanticscholar) |
| Very slow viscosity build | Grade too high, cold water only, low agitation | Verify grade, adopt cold–hot method, increase mixing time and power. (pdfs.semanticscholar) |
| Batch‑to‑batch viscosity drift | Variable water hardness or temperature | Use softened or deionized water, implement strict temperature controls. (kimachemical) |
| Visible undissolved particles | Insufficient mixing time or dead zones | Upgrade impeller design, extend hydration time, check tank baffles. (pdfs.semanticscholar) |
For complex multi‑component systems—especially high‑solids mortars or sophisticated personal‑care emulsions—partnering closely with a specialized HPMC manufacturer is often the fastest path to robust dissolution.
An experienced technical team can help you:
- Select optimized grades (viscosity, substitution, particle size) for your specific cement chemistry, surfactant system, or processing conditions. [linkedin]
- Design lab and pilot‑scale dissolution studies to establish reliable mixing windows, temperature profiles, and acceptable raw water specifications. [kimachemical]
- Scale up from 1–5 kg beaker trials to industrial reactors or mortar mixers while keeping dissolution performance consistent.
A practical next step is to document your current mixing parameters (water quality, temperature, tank size, impeller type, speed, powder addition rate) and review them with your supplier's technical support team to co‑develop an optimized dissolution protocol.
1. How long should HPMC take to dissolve in industrial practice?
Under well‑controlled conditions, low‑viscosity grades can fully dissolve in about 15 minutes, while higher viscosity grades may require significantly longer mixing and hydration times, sometimes up to several hours. [kimachemical]
2. Is it better to dissolve HPMC in hot or cold water?
It is generally safer to first disperse HPMC in cold or room‑temperature water to avoid gel lumps, then gently heat to moderate temperatures (around 40–60 °C) to accelerate final dissolution. [kimachemical]
3. Why does my HPMC form lumps even at low temperature?
Lumps often result from fast powder dumping, insufficient shear, or poor particle size distribution, which causes rapid surface swelling and dry cores that are hard to hydrate fully. [kimachemical]
4. How does water hardness affect HPMC dissolution?
Hard water with high levels of multivalent cations can slow dissolution and promote gel formation, while soft or deionized water generally supports faster and cleaner dissolution behavior. [sciencedirect]
5. Can the same HPMC grade work for both construction and personal care?
In practice, construction‑grade and daily‑chemical‑grade HPMC are optimized differently (impurities, particle size, substitution, regulatory status), so it is better to choose application‑specific grades even if the base chemistry is similar. [shengdahpmc]
1. Kimachemical. "Analysis of dissolution time and influencing factors of hydroxypropyl methylcellulose (HPMC)." Oct 25, 2024. [Link]. [pdfs.semanticscholar]
2. Kimachemical. "Understand the Three Dissolution Methods of HPMC." May 25, 2022. [Link]. [kimachemical]
3. Kima Cellulose. "Application of HPMC in construction and personal care products." Dec 4, 2024. [Link]. [kimacellulose]
4. Dongyuan Shengda HPMC Manufacturer. "Comprehensive Guide To Hydroxypropyl Methylcellulose (HPMC): Properties, Applications, And Industry Insights." Jan 30, 2026. [Link]. [shengdahpmc]
5. Eastchemy / related technical sources on high‑viscosity cellulose ether products and construction performance. [Link]. [cn.eastchemy]
6. Qianhao Chemical. "Comparative Performance of HPMC K100M with Other Viscosity Grades." Jun 13, 2025. [Link]. [qianhaochem]
7. Zhu, M. "Analysis of high‑volume industries and applications of HPMC." LinkedIn, Feb 23, 2025. [Link]. [linkedin]
8. ScienceDirect. "Swelling and erosion properties of hydroxypropylmethylcellulose matrices—influence of agitation rate and dissolution medium composition." Jul 25, 2004. [Link]. [sciencedirect]
9. Drug Discovery & Development. "Thermogelled HPMC Dissolves Better." Oct 10, 2019. [Link]. [drugdiscoverytrends]
10. NCBI / PubMed Central. "HPMCAS‑Based Amorphous Solid Dispersions in Clinic." Oct 9, 2023. [Link]. [pmc.ncbi.nlm.nih]
11. PubMed. "HPMC‑matrices for controlled drug delivery: a new model …" Nov 5, 1999. [Link]. [pubmed.ncbi.nlm.nih]
