HPMC and HEMC are both valuable non-ionic cellulose ethers for improving wetting, water retention, rheology, and application performance. However, neither product should be chosen based only on its generic chemical name. The actual surface tension reduction and wetting behavior depend on the grade's substitution pattern, molecular weight, viscosity, dosage, formulation ingredients, and target substrate.
For construction materials, surface tension reduction is only one part of the performance equation. A tile adhesive, wall putty, skim coat, cement render, or gypsum plaster must also deliver reliable water retention, smooth workability, sufficient open time, controlled air content, anti-sag performance, and strong adhesion.
In many wetting-sensitive dry-mix formulations, a well-selected HEMC grade may provide an advantage in spreading and workability. At the same time, a properly engineered HPMC grade can offer highly effective wetting together with excellent water retention, rheology control, and film-forming performance.
The practical question is not simply whether HPMC or HEMC reduces surface tension more. The more useful question is:
> Which cellulose ether grade creates the best balance of wetting, workability, viscosity, water retention, air control, and adhesion in the final formulation?
Shandong Shengda New Material Co., Ltd. develops, manufactures, and supplies construction-grade and daily-chemical-grade cellulose ethers, including Hydroxypropyl Methyl Cellulose (HPMC) and Hydroxyethyl Methyl Cellulose (HEMC), for customers seeking stable, high-quality, and sustainable formulation solutions.
Surface tension is the force that makes a liquid surface resist expansion. A liquid with a lower surface tension can often spread more easily over a solid surface.
For example, water forms rounded droplets on many surfaces because its surface tension is relatively high. When a formulation reduces surface tension and has suitable rheology, it may spread more evenly across a substrate.
In construction applications, wetting can influence how a mortar, slurry, coating, or paste contacts:
- Concrete and cement board
- Ceramic tile backs
- Gypsum board
- Mineral fillers
- Sand and lightweight aggregates
- Pigments
- Redispersible polymer powders
- Hydrophobic substrates
- Porous wall surfaces
In daily chemical applications, wetting can influence how gels, creams, shampoos, detergents, cleansers, and other formulations spread across skin, hair, powders, or oils.
However, lower surface tension does not automatically mean better application performance.
A formulation may have low surface tension but still wet poorly if it is too thick, contains excessive air, dries too quickly, separates during storage, or cannot penetrate a porous substrate. In contrast, a formulation with moderately higher surface tension may still wet effectively if it has the right viscosity, contact time, substrate compatibility, and flow behavior.

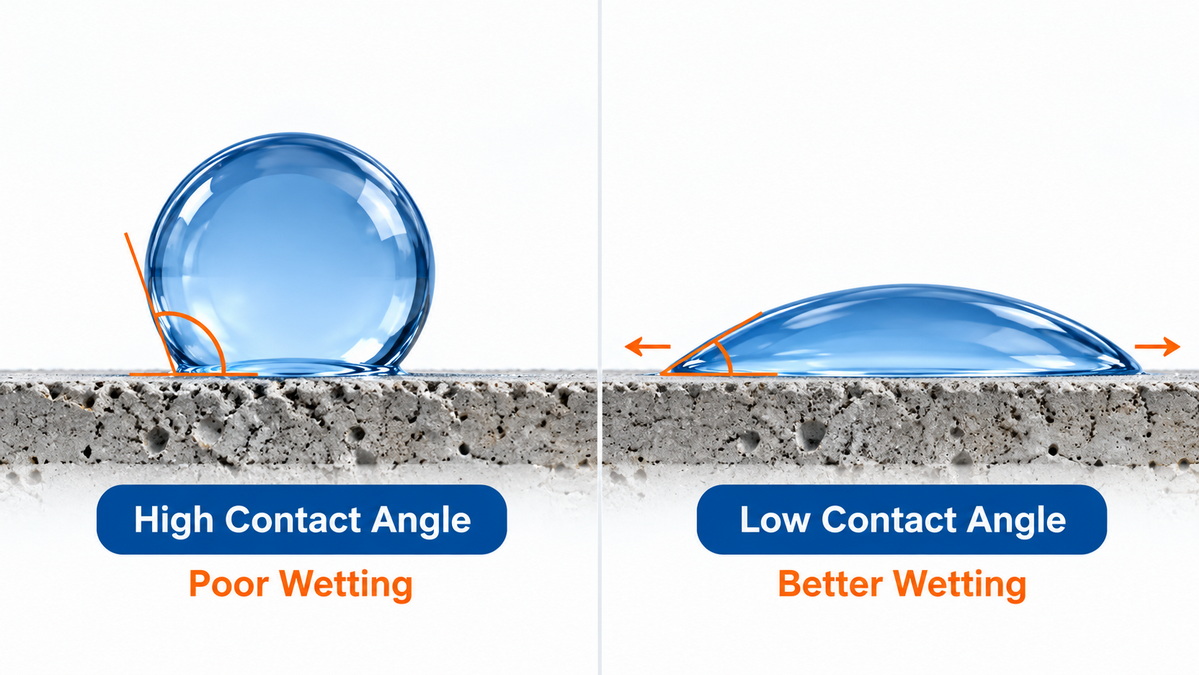

A simple way to understand wetting is through the contact angle of a liquid droplet.
- A high contact angle means the droplet remains rounded and spreads poorly.
- A low contact angle means the liquid spreads more easily over the surface.
- Better spreading often indicates better initial wetting.
For real construction systems, the surface condition matters greatly. Cement boards, tiles, concrete, gypsum, and fillers may be rough, porous, dusty, absorbent, or chemically variable. Therefore, wetting should always be evaluated using the actual formulation and the actual substrate.
HPMC and HEMC are both cellulose ethers derived from natural cellulose. They are widely used as functional additives because they dissolve or disperse in water and can provide thickening, water retention, suspension, film formation, viscosity control, and improved application properties.
Although HPMC and HEMC belong to the same broader family, their substituent groups differ.
| Property | HPMC | HEMC |
|---|---|---|
| Full name | Hydroxypropyl Methyl Cellulose | Hydroxyethyl Methyl Cellulose |
| Main substituents | Methoxy and hydroxypropyl groups | Methoxy and hydroxyethyl groups |
| Polymer type | Non-ionic cellulose ether | Non-ionic cellulose ether |
| Common functions | Water retention, thickening, film formation, rheology control | Water retention, workability, rheology control, consistency improvement |
| Construction use | Tile adhesive, wall putty, cement mortar, plaster, coatings | Tile adhesive, skim coat, render, gypsum plaster, cement mortar |
| Daily chemical use | Gels, creams, cleansers, shampoos, coatings | Selected thickening and rheology-control applications |
| Wetting behavior | Depends on grade, dosage, viscosity, and formula design | Depends on grade, dosage, viscosity, and formula design |
HPMC contains methoxy and hydroxypropyl groups. HEMC contains methoxy and hydroxyethyl groups. These chemical differences can affect hydration speed, temperature behavior, viscosity development, water retention, workability, air entrainment, and interaction with other formulation ingredients.
Both materials can show a degree of surface activity in aqueous systems. This occurs because their molecular structures contain both hydrophilic and relatively hydrophobic segments. These segments can influence how the polymer interacts with water, air, solids, oils, pigments, and other formulation components.
However, HPMC and HEMC are not single fixed products.
A low-viscosity HPMC may behave very differently from a high-viscosity HPMC. The same is true for HEMC. Differences in molecular weight, viscosity grade, substitution level, particle size, dissolution behavior, and production design can all change performance.
This is why a fair HPMC vs HEMC comparison requires matched testing conditions.
HEMC can be a strong option for formulations that require smooth spreading, balanced workability, and reliable rheology in cementitious dry-mix systems. In practice, many formulators use HEMC in applications where the material needs to spread efficiently while maintaining body, water retention, and stability.
However, it is not technically correct to state that all HEMC grades reduce surface tension more than all HPMC grades.
The surface-tension performance of a cellulose ether can vary because of:
- Molecular weight
- Viscosity grade
- Methoxy content
- Hydroxypropyl or hydroxyethyl substitution
- Concentration in water
- Temperature
- Water quality
- Presence of salts
- Surfactants or defoamers
- Other dry-mix ingredients
- Measurement method
- Hydration time
A suitable HEMC grade may provide excellent wetting performance in a tile adhesive or wall putty formula. At the same time, a low- or medium-viscosity HPMC grade may provide similar or better wetting in another formula, especially if water retention, cohesion, film formation, or anti-sag performance is the key requirement.
The best approach is to treat surface tension as one useful performance indicator rather than the only decision factor.
In construction materials, wetting is not only about how quickly the liquid spreads in the first few seconds. It also involves the ability of the wet mortar or paste to maintain contact with the substrate during application.
HEMC can be particularly useful when a formulation requires:
- Smooth troweling
- Good spreadability
- Stable workability
- Controlled rheology
- Reliable water retention
- Improved open time
- Lower risk of rapid drying on absorbent surfaces
- Balanced consistency during application
- Strong compatibility with dry-mix mortar systems
For tile adhesive, wall putty, cement render, skim coat, and gypsum plaster, the formulator must achieve more than initial wetting. The material needs to remain workable long enough for proper placement, leveling, and bonding.
A suitable HEMC grade can help maintain this balance by controlling water movement and rheology throughout the application process.
HPMC is widely used in construction and daily chemical formulations because it can provide strong water retention, efficient thickening, film-forming ability, and stable viscosity control.
In a mortar or coating system, HPMC can improve practical wetting indirectly by:
- Retaining water at the substrate interface
- Reducing rapid water loss into porous surfaces
- Supporting homogeneous mixing
- Improving the consistency of the formulation
- Maintaining workability during the application period
- Supporting uniform coverage and contact
- Helping the formulation remain cohesive on vertical surfaces
HPMC is especially useful where the formulator needs to balance wetting with other critical requirements, such as anti-sag performance, open time, water retention, and adhesive strength.
For this reason, HPMC should not be viewed as a weaker wetting option. It is a highly versatile cellulose ether that can provide excellent application performance when matched with the correct formulation.
A lower surface-tension value can improve initial spreading, but it cannot fully predict the final application result.
For example, a mortar may spread quickly but still perform poorly if it loses water too fast. A coating may show low surface tension but create surface defects if it contains too much air. A wall putty may wet the substrate initially but crack later because the formulation lacks appropriate water retention or binder balance.
Practical wetting depends on several connected factors:
| Performance Factor | Why It Matters |
|---|---|
| Surface tension | Influences how a liquid spreads at the liquid-air interface |
| Contact angle | Shows how well a liquid wets a specific substrate |
| Viscosity | Affects flow, spreadability, anti-sag behavior, and material body |
| Shear-thinning behavior | Helps the material flow under mixing or troweling while remaining stable at rest |
| Water retention | Helps maintain moisture for cement hydration and adhesion development |
| Air content | Excessive air can reduce density, strength, and surface quality |
| Open time | Provides enough working time for installation and adjustment |
| Substrate absorption | Highly porous surfaces can pull water out of the formulation quickly |
| Temperature | Changes hydration, viscosity, working time, and evaporation |
| Additive compatibility | Surfactants, polymers, defoamers, and fillers can change final behavior |
The best cellulose ether is therefore the one that contributes to the full performance package rather than only delivering the lowest surface-tension value.
Surface tension describes the interaction between a liquid and air. Interfacial tension describes the interaction between two different phases, such as water and oil.
This difference becomes important in products containing hydrophobic materials, including:
- Oils
- Fragrances
- Silicone fluids
- Polymer dispersions
- Hydrophobic pigments
- Water-repellent additives
- Certain resins
- Daily chemical active ingredients
In these formulations, a cellulose ether may affect not only how the liquid spreads over a solid surface but also how it interacts with oil droplets, hydrophobic particles, or dispersed polymers.
For personal-care products, coatings, paints, and emulsions, the formulator should evaluate the cellulose ether in the complete formula. Testing the material only in deionized water is useful for initial screening, but it does not fully represent real production conditions.
| Application | Recommended Starting Option | Key Performance Target | Important Tests |
|---|---|---|---|
| Tile adhesive | HEMC or HPMC, depending on grade | Wetting, open time, slip resistance, adhesion | Open time, tensile adhesion, water retention, air content |
| Wall putty | HPMC or HEMC | Smooth spreading, water retention, crack resistance | Trowelability, smoothness, sanding, water retention |
| Skim coat | HEMC or HPMC | Fine finish, consistent workability, adhesion | Surface finish, reworkability, cracking, adhesion |
| Cement render | Often HEMC for workability-focused systems | Pumpability, spreadability, substrate contact | Pumpability, sag resistance, water retention |
| Gypsum plaster | HEMC or HPMC | Working time, consistency, adhesion | Setting time, workability, strength |
| Self-leveling mortar | Low-viscosity grade strategy | Flow, leveling, anti-segregation | Flow spread, viscosity, setting behavior |
| Water-based coatings | Often HPMC, with grade-specific evaluation | Thickening, leveling, film formation | Viscosity, leveling, sag resistance, gloss |
| Daily chemical gels | Often HPMC | Clarity, viscosity, sensory feel, stability | Transparency, spreadability, stability, salt tolerance |
The most successful formulation strategy is to begin with the application requirement rather than with a fixed preference for one material.
For example, if a tile adhesive needs improved open time and smooth troweling in a warm, dry climate, HEMC may be an excellent starting point. If a wall putty requires stronger water retention and cohesive anti-sag performance, HPMC may be the better initial option.
Both can be highly effective when the grade is properly selected.
A reliable comparison requires consistent testing. Testing different grades at different dosages or under different mixing conditions can lead to misleading conclusions.
Use the following procedure when comparing HPMC and HEMC.
Compare both materials at the same active dosage.
For example, use the same percentage of cellulose ether in the total dry-mix formula. This helps reveal whether the difference comes from the polymer chemistry rather than dosage variation.
Water quality can strongly affect cellulose ether hydration and final viscosity.
Use the same water source for both samples:
- Deionized water for laboratory screening
- Tap water for local production simulation
- Hard water where relevant
- Actual process water for final validation
Temperature affects surface tension, hydration rate, viscosity, workability, and evaporation.
Test under a defined temperature range, such as normal laboratory conditions, and repeat the test under warm conditions if the product will be used in hot climates.
Incomplete dissolution can create false viscosity and surface-tension results.
Follow the same mixing and hydration procedure for every sample. Use the recommended dispersion process and allow sufficient hydration time before measurement.
Surface-tension testing can provide useful screening data.
Common laboratory methods include:
- Wilhelmy plate method
- du Noüy ring method
- Pendant drop method
- Bubble pressure method
For meaningful comparison, keep the concentration, temperature, mixing process, and measurement time consistent.
A contact-angle test can show how the formula wets the actual substrate.
Useful test surfaces may include:
- Ceramic tile
- Cement board
- Concrete
- Gypsum board
- Glass
- PVC
- Coated metal
- Hydrophobic polymer surfaces
Measure the contact angle at defined time intervals, such as immediately after droplet placement and after several seconds.
For construction dry-mix products, practical performance testing is essential.
Evaluate:
- Trowelability
- Spreadability
- Water retention
- Open time
- Slip resistance
- Air content
- Mortar density
- Adhesion strength
- Surface finish
- Crack resistance
- Final mechanical strength
For daily chemical products, evaluate:
- Viscosity
- Clarity
- Spreadability
- Sensory feel
- Stability
- Salt tolerance
- Foam behavior
- Compatibility with active ingredients
- Long-term storage performance
HEMC is often a strong choice when the formulation requires a practical balance between wetting, water retention, and workability.
Consider HEMC when developing:
- High-performance tile adhesives
- Cement render
- Skim coats
- Wall putty
- Gypsum plaster
- Repair mortars
- Dry-mix mortars for varying temperature conditions
A suitable HEMC grade can support smoother application, controlled rheology, and improved handling during installation.
HPMC is often the preferred starting point when water retention, viscosity stability, film formation, and cohesive body are the central requirements.
Consider HPMC when developing:
- Cement-based wall putty
- Tile adhesive requiring anti-sag behavior
- Water-based coatings
- Personal-care gels
- Household-care formulations
- Thickened liquid products
- Construction mortars requiring strong water-retention performance
HPMC can provide a strong balance between wetting support and overall formulation stability.
In some applications, the main technical challenge is wetting a highly hydrophobic surface, difficult pigment, oily material, or low-energy plastic substrate.
In these cases, HPMC or HEMC may not be sufficient as the main wetting agent.
A dedicated surfactant, dispersant, or wetting additive may be needed to achieve rapid spreading and low contact angles. The cellulose ether can then provide the necessary viscosity, water retention, suspension stability, and rheology control.
This approach often creates a more stable and effective formulation than expecting one additive to solve every performance requirement.
A high-viscosity HPMC should not be compared directly with a low-viscosity HEMC. Viscosity grade can strongly affect flow, water retention, air entrainment, and application behavior.
Surface tension is important, but it does not define final mortar strength, adhesion, open time, or anti-sag performance.
Cellulose ethers can influence air content. Too much air may reduce density, affect strength, increase porosity, and create surface defects.
Deionized-water testing is useful for screening, but final decisions should be based on actual formulations containing cement, fillers, polymers, pigments, surfactants, defoamers, and local water.
More cellulose ether is not always better. Excess dosage may create excessive viscosity, poor flow, delayed setting, increased air entrainment, or reduced mechanical performance.
The mixing sequence can influence hydration and final performance. Dry blending, pre-dissolution, water addition speed, mixing energy, and hydration time can all affect the result.
HEMC can be a highly effective choice for wetting-sensitive construction formulations when smooth workability, rheological balance, water retention, and practical spreading performance are required.
HPMC remains a highly versatile and reliable option when water retention, viscosity control, film formation, cohesive body, and anti-sag performance are especially important.
Neither product should be selected based only on the abbreviation HPMC or HEMC. The actual performance depends on the grade, molecular structure, viscosity, dosage, formulation system, substrate, processing conditions, and local climate.
The most effective method is to compare matched HPMC and HEMC grades under identical conditions and evaluate the complete performance package.
For construction-grade and daily-chemical-grade cellulose ether solutions, Shandong Shengda New Material Co., Ltd. provides HPMC and HEMC products designed to support stable formulation performance, consistent quality, and application-specific development requirements.
No. HEMC can be advantageous in some workability-focused construction formulas, but the better choice depends on the exact grade, dosage, substrate, formulation ingredients, and performance target. A suitable HPMC grade can perform equally well or better in certain systems.
No. Lower surface tension can improve spreading, but tile adhesive performance also depends on water retention, open time, slip resistance, air content, adhesion, viscosity, and curing behavior.
Yes. HPMC can show surface-active behavior in water. Its ability to reduce surface tension depends on its molecular structure, concentration, molecular weight, substitution level, and solution conditions.
Useful tests include surface tension, contact angle, viscosity, water retention, air content, open time, spreadability, slip resistance, adhesion strength, and final mechanical properties.
Not always. HPMC and HEMC can contribute to wetting and formulation stability, but dedicated surfactants or wetting agents may still be needed for highly hydrophobic surfaces, difficult pigments, oils, or low-energy substrates.
Both can be suitable. HPMC is often selected for water retention, smooth application, and cohesive viscosity. HEMC can be selected where workability and rheological balance are the main priorities. Final selection should be based on formulation testing.
Different HPMC grades may have different molecular weights, viscosity levels, methoxy content, hydroxypropyl content, particle sizes, and hydration behavior. These differences can significantly affect rheology, wetting, water retention, and application results.
1. McMullen, R. L., Ozkan, S., & Gillece, T. "Physicochemical Properties of Cellulose Ethers." *Cosmetics*, 2022, 9(3), 52.
[https://www.mdpi.com/2079-9284/9/3/52]
2. He, M., Lin, Y., Huang, Y., Fang, Y., & Xiong, X. "Research Progress of the Preparation of Cellulose Ethers and Their Applications: A Short Review." *Molecules*, 2025, 30(7), 1610.
[https://www.mdpi.com/1420-3049/30/7/1610]
3. Vlad, R.-A., Pintea, A., Pintea, C., Rédai, E.-M., Antonoaea, P., Bîrsan, M., & Ciurba, A. "Hydroxypropyl Methylcellulose—A Key Excipient in Pharmaceutical Drug Delivery Systems." *Pharmaceutics*, 2025, 17(6), 784.
[https://pmc.ncbi.nlm.nih.gov/articles/PMC12196896/]
4. Ochoa Machiste, E., & Buckton, G. "Hydroxypropylmethylcellulose at the Oil-Water Interface."
5. *Encyclopedia of Polymer Science and Technology*. "Cellulose Ethers."
