close
Choose Your Site
Global
Social Media
Views: 249 Author: Shengda Publish Time: 2026-10-20 Origin: Site
Content Menu
● What Does HPMC Do in Self-Leveling Mortar?
>> Reduce Segregation and Bleeding
>> Influence Working Time and Hydration
● Does HPMC Improve Self-Leveling Flow?
● How to Select HPMC for Self-Leveling Compounds
>> Start With a Low-Viscosity Application Grade
>> Compare Viscosity Under Matching Conditions
>> Evaluate the Complete Performance Profile
● HPMC Dosage: Establish a Formulation-Specific Window
>> Use a Controlled Dosage Ladder
● How HPMC Works With Other Self-Leveling Additives
>> Defoamers
>> Redispersible Polymer Powders
● A Practical Validation Plan for Manufacturers
>> Step 1: Define the Application
>> Step 3: Measure Fresh Properties
>> Step 4: Check Hardened Performance
>> Step 5: Repeat Under Realistic Conditions
● Troubleshooting Common Self-Leveling Problems
● Expert Perspective: Avoid Three Common Shortcuts
● What Buyers Should Request From an HPMC Supplier
>> What is HPMC used for in self-leveling compounds?
>> Is higher-viscosity HPMC better for self-leveling mortar?
>> Can HPMC replace a superplasticizer?
>> Does HPMC prevent all bleeding and segregation?
>> Can the same HPMC grade be used in cement-based and gypsum-based systems?
>> How should manufacturers compare HPMC samples?
HPMC for self-leveling compounds helps control water retention, consistency, and particle suspension so flooring mortars can spread without excessive bleeding or segregation. However, choosing the right hydroxypropyl methylcellulose requires more than selecting a viscosity number. The grade must support flow, air release, setting behavior, and hardened performance in the complete formulation.
At Shandong Shengda New Material Co., Ltd., our focus is the research, development, production, and supply of cellulose ethers for construction and daily-chemical applications. For self-leveling mortar manufacturers, the practical objective is balance: enough stabilization to keep the mixture uniform, without making it too thick to level.
This guide explains how to select HPMC, establish a dosage, and evaluate performance before commercial production.
What Does HPMC Do in Self-Leveling Mortar?
HPMC is a water-soluble, nonionic cellulose ether made by chemically modifying cellulose. Once dispersed and dissolved, it changes how water and solid particles behave within a mortar.
Unlike tile adhesive, which needs strong resistance to vertical movement, a self-leveling compound must spread across a horizontal surface. Its cellulose ether therefore needs to provide controlled stabilization rather than maximum thickening.
HPMC helps reduce rapid water loss into absorbent substrates and limits water separation within the fresh mixture.
This supports more consistent application conditions. However, water retention does not replace substrate preparation or a compatible primer. A highly absorbent, unprimed floor can still disturb the mortar's water balance.
Cement, fillers, and sand have different particle sizes and densities. Without sufficient stabilization, solids may settle while water rises.
An appropriate HPMC grade helps maintain a more uniform suspension during mixing, placement, and leveling. Excessive thickening creates the opposite problem: a stable mortar that cannot spread adequately.
Cellulose ethers can affect cement hydration and setting behavior as well as water retention.
These effects depend on the grade, dosage, binder chemistry, and other additives. Longer working time should therefore be measured, not assumed. A formulation that remains fluid longer may also develop early strength more slowly.
HPMC does not function like a conventional water-reducing dispersant. Its principal contribution is managing consistency and stability.
A useful formulation needs both:
- Sufficient flow to spread and merge between adjacent pours.
- Sufficient cohesion to prevent sedimentation and surface water separation.
Adding more HPMC may improve stability while reducing spread. Conversely, reducing it may increase initial flow but allow segregation.
This distinction matters when comparing samples. The largest flow diameter is not necessarily the best result. Examine the flow edge, surface uniformity, aggregate distribution, and behavior after standing.
Polycarboxylate superplasticizers usually handle much of the dispersion requirement. HPMC helps control the resulting mixture. These ingredients should be evaluated together.
Low-viscosity cellulose ethers are commonly considered for self-leveling applications because excessive thickening restricts leveling.
However, "low viscosity" is not a complete purchasing specification. Two grades with similar solution viscosity can behave differently in cement because their substitution characteristics, modifications, and dissolution behavior differ.
Ask for application guidance specific to your binder system rather than transferring a wall-putty or tile-adhesive grade directly.
A viscosity value is meaningful only when the measurement conditions are known.
Request:
- Solution concentration.
- Measurement temperature.
- Instrument and measurement method.
- Sample preparation procedure.
- Whether the value represents a typical result or specification range.
Do not compare two quoted values as equivalent unless their test conditions match.
| Selection factor | Why it matters | What to verify |
|---|---|---|
| Thickening efficiency | Influences spread and cohesion | Initial flow and flow retention |
| Dissolution behavior | Affects consistency development | Lumps and time-dependent thickening |
| Air behavior | Influences surface quality and density | Entrained air, pinholes, and wet density |
| Binder compatibility | Affects setting and strength | Setting time and early strength |
| Production consistency | Supports reliable manufacturing | Batch documentation and repeat testing |
An application-specific grade should be judged in mortar, not solely in a laboratory solution.
There is no universal HPMC dosage for every self-leveling compound.
The required amount depends on the cellulose ether grade, cement chemistry, filler distribution, water demand, superplasticizer, and intended application thickness.
A broad percentage quoted in a general article should not become a production specification without validation. Recommendations must also state whether the percentage refers to total dry mortar or binder mass.
Start with the supplier's recommendation for the selected grade and formulation.
Then compare:
1. A control without HPMC, where technically appropriate.
2. A dosage below the proposed starting point.
3. The proposed starting dosage.
4. A dosage above that point.
Keep water content, mixing energy, temperature, and other additives constant during this first comparison.
For illustration, 0.05% of total dry mortar equals 0.5 kg per metric tonne. This is a calculation example, not a recommended dosage.
Select the lowest dosage that consistently meets the complete performance requirements, rather than the dose producing the highest water retention alone.
A superplasticizer disperses binder particles and helps achieve flow at the selected water content.
If the mortar appears too thick, increasing superplasticizer may seem convenient. However, this can produce instability if the original issue is excessive HPMC, unsuitable particle grading, or incompatible ingredients.
Check the full formulation before correcting one additive with another.
Cellulose ethers can influence air entrainment and bubble stability. Excess air may contribute to pinholes, lower density, and reduced strength.
Evaluate the defoamer alongside HPMC. Record air content or wet density rather than relying only on visible bubbles.
A smooth-looking surface does not prove that internal air content is acceptable.
Redispersible polymer powders can contribute to adhesion and other hardened properties, depending on polymer chemistry and dosage.
HPMC supports fresh-mortar behavior, but it is not a substitute for the polymer package or substrate primer.
When evaluating bond performance, assess the entire system, including substrate condition and curing.
Accelerators and retarders influence the available application window and strength development.
Because cellulose ethers may also affect hydration, test setting-control additives in combination with the selected HPMC. A combination that works in one cement may behave differently after a binder change.
A repeatable test program is more useful than a single impressive spread result.
The following workflow is a proposed development framework, not a reported customer trial.
Record the intended substrate, primer, layer thickness, placement method, working temperature, and required floor-covering schedule.
Distinguish walkability from readiness to receive flooring. Neither property should be inferred from surface appearance alone.
Premix HPMC thoroughly with the other dry ingredients before adding water, unless the grade supplier specifies another procedure.
Use consistent equipment, batch size, mixing speed, and mixing time. Follow the mortar's validated sequence; do not introduce an arbitrary resting period into a rapid-setting system.
Record water temperature and powder temperature.
Compare initial flow, flow retention, healing behavior, bleeding, segregation, and wet density.
For hydraulic-cement self-leveling mortars, ASTM C1708/C1708M provides methods addressing relevant fresh and hardened properties. Use the applicable edition and complete procedure rather than treating an informal spread test as equivalent.
Measure setting time, early strength, and specified later-age mechanical properties.
Where relevant, also evaluate bond strength, dimensional change, surface integrity, and moisture conditions before floor covering.
A formulation should not pass simply because its fresh flow looks attractive.
Retest promising combinations with representative raw-material batches and expected temperature conditions.
Finally, conduct a controlled placement trial at the intended thickness. Laboratory mixing cannot reproduce every pumping, substrate, and installation variable.

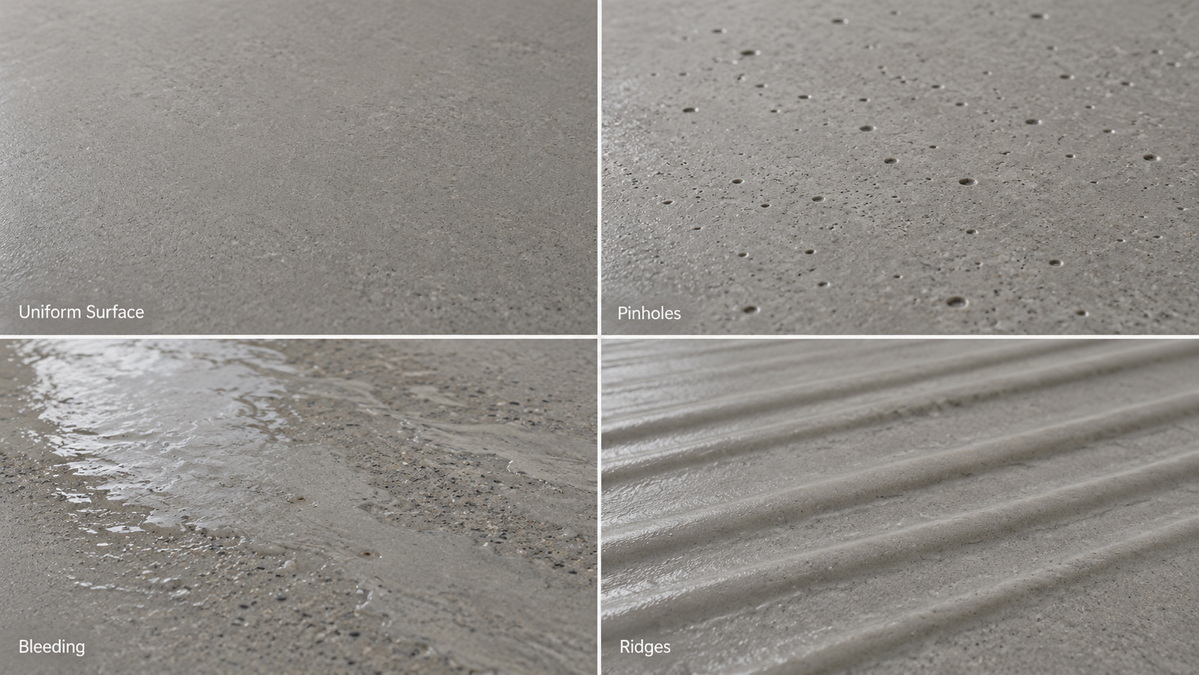

| Observed problem | Possible contributors | First checks |
|---|---|---|
| Poor spread or persistent ridges | Excess thickening, low water, rapid stiffening | Dosage, water measurement, elapsed time |
| Bleeding or sedimentation | Insufficient stabilization, excess water, over-dispersion | HPMC level, grading, superplasticizer |
| Pinholes or foam | Entrained air, primer outgassing, unsuitable defoamer | Wet density, substrate preparation, air release |
| Slow early strength | Hydration effects, excess air, water imbalance | Setting time, density, additive compatibility |
| Lumps or inconsistent viscosity | Poor dry distribution, uneven wetting | Premixing and dissolution behavior |
| Cracking or debonding | Substrate movement, shrinkage, preparation defects | Full system, thickness, curing conditions |
These are diagnostic starting points, not proof of a single cause.
Change one factor at a time whenever possible. Otherwise, an apparent improvement may hide the original problem and make future batch failures harder to investigate.
First, do not equate greater water retention with better overall performance. Self-leveling compounds need controlled water management while preserving flow and acceptable drying behavior.
Second, do not describe HPMC as a guarantee against cracking. Cracking also depends on binder chemistry, water content, restraint, thickness, substrate conditions, and curing.
Third, do not assume cellulose ether increases compressive strength. Published mortar research shows that increased air entrainment and hydration effects can offset benefits. These findings identify risks to investigate; they do not predict every self-leveling formulation.
The most useful question is not "Which HPMC is strongest?" It is "Which grade achieves the required performance in this particular system?"
A useful technical inquiry includes more than a target price and viscosity.
Request a technical data sheet, safety data sheet, batch specifications, viscosity test conditions, storage guidance, and application-specific dosage advice.
Share your binder type, water addition, target flow, required working time, and current failure symptoms. This helps narrow sample selection.
For sustainability claims, request product-specific evidence. Cellulose-derived raw materials alone do not establish the environmental footprint of a finished HPMC grade or mortar.
At Shandong Shengda New Material Co., Ltd., we welcome inquiries from manufacturers developing construction-grade cellulose ether formulations.
Send your formulation requirements and current test results when requesting HPMC samples. Ask for a proposed grade and comparison plan, then validate the material against your production and application criteria.
HPMC helps control water retention, consistency, and particle suspension. Its purpose is to support a uniform, workable mixture without excessively restricting flow.
Not necessarily. Higher thickening can reduce spread and leave leveling marks. Application suitability depends on the complete grade profile, dosage, and formulation.
No. Their main functions differ. Superplasticizers promote particle dispersion, while HPMC primarily manages consistency and water behavior. Both may be needed in a balanced formulation.
No. It can help, but excess water, unsuitable grading, or excessive dispersant can still destabilize the mortar. Evaluate the complete formulation.
Possibly, but suitability must be verified separately. Binder chemistry and setting behavior differ. A successful cement-based result does not establish gypsum compatibility.
Use identical raw materials, water content, mixing conditions, and test timing. Compare flow, stability, air behavior, setting, and strength—not viscosity or purchase price alone.
1. KIMA Chemical Co., Ltd. — "What is HPMC for self-leveling?"
Original article supplied for reconstruction. Used to identify the existing coverage and gaps concerning flow, water retention, dosage, compatibility, and performance claims. Its general dosage range is not adopted as a universal production recommendation. [kimacellulose]
2. Dow — "Self-Leveling Underlayment."
Manufacturer application overview describing the roles of cellulose ethers, redispersible latex powders, and polymer emulsions in flooring formulations. Its highlighted cellulose ether example is HEMC, not HPMC; it supports application context rather than equivalence between grades. [dow]
3. Dow — "WALOCEL™ MT 400 PFV Cellulose Ether."
Product information for a cellulose ether developed for cement-based grouts and self-leveling underlayments. This HEMC example illustrates application-specific grade selection and does not establish specifications for Shengda HPMC products. [dow]
4. ASTM International — "C1708/C1708M: Standard Test Methods for Self-leveling Mortars Containing Hydraulic Cements."
Public scope and significance information supporting discussion of initial flow, flow retention, healing time, setting time, compressive strength, and flexural strength. Testing requires the complete applicable standard. [astm]
5. ANSI Webstore — "ASTM C1708/C1708M-25."
Listing describing hydraulic-cement self-leveling mortars used as underlayments or overlayments. Included to identify a newer listed edition; laboratories should confirm the edition required by their specifications. [webstore.ansi]
6. "Effect of Cellulose Ether and Starch Ether on Hydration of Cement Processes and Fresh-State Properties of Cement Mortars" — published December 8, 2022; full text available through PubMed Central.
Research supporting the discussion of water retention, consistency, air entrainment, and setting effects. The tested mortars are not a universal model for commercial self-leveling formulations. [pmc.ncbi.nlm.nih]
7. "Evolutions in the properties and microstructure of cement mortars containing hydroxyethyl methyl cellulose after controlling the air content."
Research supporting the importance of air control when interpreting strength, porosity, shrinkage, and hydration effects. The study concerns HEMC; its results are not presented as direct measurements of Shengda HPMC. [sciencedirect]
