Views: 234 Author: Shengda Publish Time: 2026-08-17 Origin: Site
Content Menu
● What Do HPMC E and HPMC K Mean?
● The Main Difference Is Substitution Chemistry
● HPMC E: Typical Characteristics and Applications
● HPMC K: Typical Characteristics and Applications
● Why It Is Inaccurate to Say "E Dissolves Faster Than K"
● HPMC E vs. K in Different Applications
● Construction-Grade HPMC Selection
● Personal-Care and Household Product Selection
● A Practical Method for Choosing the Right HPMC Grade
>> 1. Define the End Application
>> 3. Run a Side-by-Side Trial
>> 4. Approve a Complete Specification
● Why Grade Name Alone Is Not Enough
>> Is HPMC E the same as HPMC 2910?
>> Is HPMC K the same as HPMC 2208?
>> Which is better for sustained-release tablets: HPMC E or HPMC K?
>> Can HPMC E replace HPMC K directly?
>> Which HPMC grade is suitable for tile adhesive?
>> How should HPMC be added to water?
>> Does a higher HPMC viscosity always mean better performance?
HPMC is made by modifying natural cellulose with methoxy and hydroxypropoxy groups. The amount and ratio of these groups influence how the polymer behaves when it contacts water or is incorporated into a finished formulation.
In common grade-designation systems, HPMC E is generally associated with hypromellose substitution type 2910, while HPMC K is generally associated with substitution type 2208.
| Property | HPMC E Type | HPMC K Type |
|---|---|---|
| Common substitution association | 2910 | 2208 |
| Typical methoxy content | Approximately 28.0–30.0% | Approximately 19.0–24.0% |
| Typical hydroxypropoxy content | Approximately 7.0–12.0% | Approximately 4.0–12.0% |
| Relative hydrophilicity | Medium | Higher |
| Common functional focus | Film formation, binding, thickening | Hydration, gel formation, controlled release |
| Typical viscosity examples | E3, E5, E15, E50, E4M | K100LV, K4M, K15M, K100M |
These values describe substitution categories rather than a complete product specification. Two HPMC products may have similar viscosity levels but still behave differently if their substitution pattern, particle size, or processing characteristics differ.
The E and K designations are not simply viscosity labels. They indicate different substitution families.
A viscosity grade describes the resistance of an HPMC solution to flow under defined test conditions. A substitution type describes the polymer's chemical composition. Both influence performance, but they do not mean the same thing.
For example, an E4M grade and a K4M grade may have comparable nominal viscosity levels. However, they can differ in hydration profile, thermal gelation behavior, film characteristics, compatibility with other ingredients, and performance in certain applications.
This is why product selection should begin with the finished-product target rather than with a grade name alone.
HPMC E is generally linked to substitution type 2910. It has a relatively higher methoxy content than K-type HPMC, which contributes to its distinct film-forming and hydration characteristics.
Lower- and medium-viscosity E grades are often evaluated in systems where controlled thickening, binding, or film formation is important.
HPMC E grades may be considered for:
- Tablet film coating
- Granulation binding
- Capsule-related applications
- Thickening and suspension stabilization
- Film-forming systems
- Certain immediate-release formulations
- Selected modified-release formulations
- Personal-care products requiring cellulose-based rheology control
For coating applications, HPMC E can help create smooth and uniform films when the formulation, coating process, plasticizer system, pigment load, and drying conditions are properly balanced.
In personal-care products, HPMC E may support viscosity control, texture improvement, suspension stability, and a pleasant sensory profile. The final result depends heavily on the surfactant system, electrolyte level, fragrance load, pH, and other ingredients.
HPMC K is generally linked to substitution type 2208. It is often regarded as relatively more hydrophilic and is frequently evaluated in formulations that depend on strong hydration and gel-layer formation.
When high-viscosity K-type HPMC contacts water, it can hydrate and form a gel layer. In controlled-release systems, this gel layer may regulate water penetration, polymer erosion, and active-ingredient diffusion.
HPMC K grades are often evaluated for:
- Extended-release tablet matrices
- Hydrophilic controlled-release systems
- High-viscosity thickening
- Binding applications
- Suspension systems
- Personal-care and household formulations
- Film-forming or rheology-control applications requiring a different hydration profile
High-viscosity grades such as K4M, K15M, and K100M are commonly associated with hydrophilic matrix applications. Their performance, however, depends on many factors, including active-ingredient solubility, tablet hardness, compression force, polymer concentration, particle size, and dissolution conditions.
It is common to find simplified statements suggesting that HPMC E dissolves faster than HPMC K. This can be directionally useful in a narrow comparison, but it should not be treated as a universal rule.
The actual hydration and dissolution behavior of HPMC is influenced by many variables:
- Substitution type
- Viscosity grade
- Molecular weight
- Particle-size distribution
- Powder addition method
- Water temperature
- Mixing speed and shear
- Polymer concentration
- Formulation pH
- Salt concentration
- Presence of surfactants
- Presence of solvents or co-solvents
- Other polymers or functional additives
A low-viscosity E grade may hydrate differently from a high-viscosity K grade. However, this does not mean that every E grade will always dissolve more quickly than every K grade.
The practical question is not only how quickly the powder wets or disperses. It is also whether the polymer reaches the required viscosity, water-retention level, gel strength, clarity, stability, or film-forming performance in the final product.
The following table provides a practical overview for initial selection. It should be used as a starting point for laboratory evaluation rather than as a direct replacement guide.
| Application | When HPMC E May Be Considered | When HPMC K May Be Considered | Important Evaluation Factors |
|---|---|---|---|
| Tablet coating | When film formation and coating processability are key priorities | When formulation testing confirms suitable coating performance | Film integrity, coating uniformity, adhesion |
| Wet granulation | When binding performance and process control are required | When stronger hydration or gel behavior is needed | Granule strength, flowability, tablet hardness |
| Extended-release tablets | For selected matrix systems | Often considered for hydrophilic sustained-release matrices | Dissolution profile, gel strength, tablet integrity |
| Tile adhesive | Selection should focus on water retention and workability | Selection should focus on water retention and anti-slip performance | Open time, slip resistance, tensile adhesion |
| Wall putty | Useful where smooth workability and controlled water retention are needed | Useful where a different rheology or retention profile is required | Workability, sag resistance, surface finish |
| Shampoo and body wash | May support thickening, clarity, and sensory properties | May provide a different rheology profile depending on the formulation | Clarity, viscosity, foam, salt compatibility |
| Cream and lotion | May support film formation and texture | May support hydration and viscosity development | Stability, spreadability, skin feel |
Construction-Grade HPMC SelectionFor tile adhesive, skim coat, wall putty, cement render, gypsum plaster, and other dry-mix mortar products, the E or K designation is usually less important than application performance.
A construction-grade HPMC should be selected according to measurable requirements, such as:
- Viscosity range
- Water-retention performance
- Workability
- Open time
- Slip resistance
- Sag resistance
- Setting-time influence
- Compatibility with cement or gypsum
- Compatibility with redispersible polymer powder
- Dosage efficiency
- Particle size and dissolution behavior
For example, a tile-adhesive manufacturer may need HPMC that helps maintain water within the mortar, improves trowelability, extends open time, and reduces tile slip. A wall-putty producer may place more emphasis on smooth application, anti-sag behavior, water retention, and surface finish.
The most suitable product is the one that performs consistently in the customer's actual dry-mix recipe under real mixing and application conditions.
HPMC is also used in shampoos, body washes, facial cleansers, lotions, creams, gels, liquid detergents, and other daily chemical products.
In these systems, formulators should focus on the finished-product properties rather than only on the product letter or viscosity label.
Important evaluation points include:
- Viscosity development
- Appearance and transparency
- pH compatibility
- Salt tolerance
- Surfactant compatibility
- Foam quality
- Suspension stability
- Freeze-thaw stability
- Centrifugal stability
- Sensory profile
- Storage stability
A grade that performs well in a surfactant-free gel may not perform the same way in a shampoo containing anionic surfactants, fragrance, pearlizing agents, salt, preservatives, and conditioning additives.
A representative sample should always be tested in the intended formula.

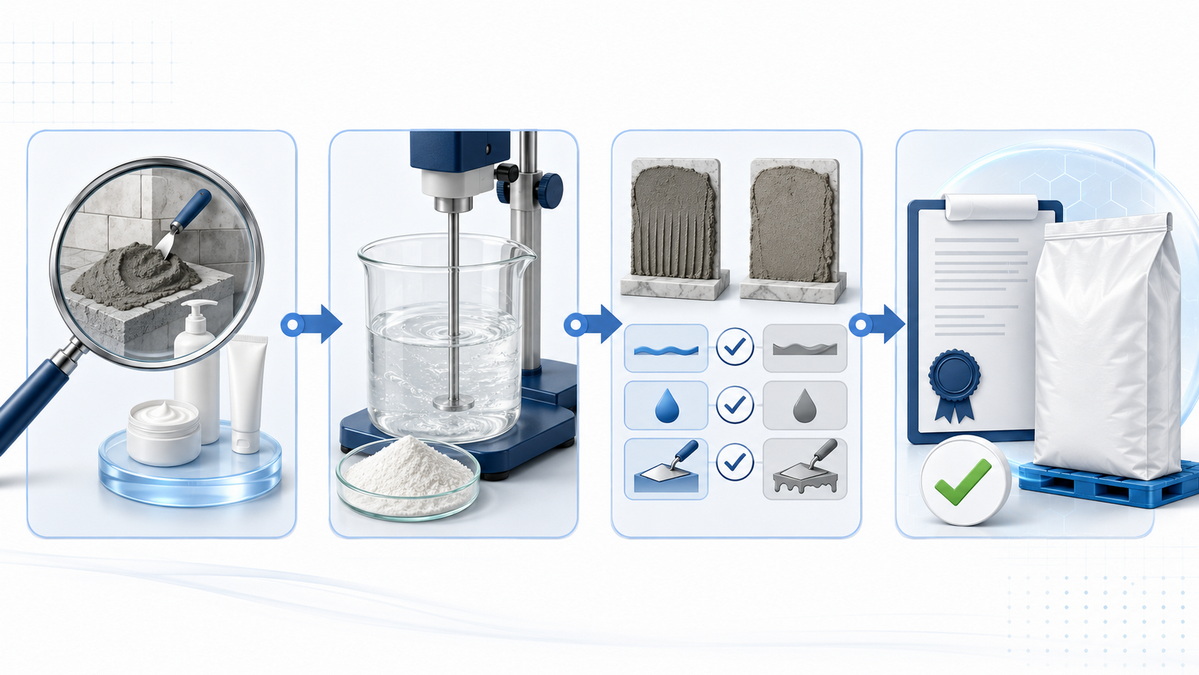

A structured selection process reduces unnecessary sampling cycles and helps manufacturers identify a stable, cost-effective grade more efficiently.
Begin by clearly identifying the product system.
Examples include:
- Cement-based tile adhesive
- Gypsum plaster
- Wall putty
- Skim coat
- Liquid detergent
- Shampoo
- Shower gel
- Facial cleanser
- Lotion
- Cream
- Pharmaceutical coating
- Tablet binder
- Controlled-release matrix tablet
Different applications require different combinations of viscosity, hydration, water retention, film formation, and compatibility.
Instead of requesting a generic "high-quality HPMC," establish measurable technical requirements.
These may include:
- Target viscosity and test method
- Test-solution concentration
- Moisture requirement
- Particle-size requirement
- Water-retention target
- Desired workability
- Open time
- Anti-slip target
- Product transparency
- Required pH range
- Stability target
- Required dissolution profile
- Packaging and storage requirements
A detailed technical brief allows the supplier to recommend grades based on performance rather than assumptions.
A side-by-side comparison is essential when changing suppliers or replacing an existing HPMC grade.
For dry-mix mortar, compare:
- Water retention
- Mixing time
- Workability
- Open time
- Tile slip
- Sag resistance
- Tensile adhesion
- Surface appearance
For personal-care products, compare:
- Hydration time
- Viscosity build
- Transparency
- Foam behavior
- pH stability
- Freeze-thaw stability
- Storage stability
- Sensory characteristics
For pharmaceutical applications, use appropriate analytical, quality-control, and dissolution procedures based on the intended market and regulatory requirements.
A robust specification should cover more than nominal viscosity.
It may include:
- Appearance
- Viscosity range
- Moisture content
- Ash content
- pH value
- Particle-size distribution
- Substitution type, where applicable
- Microbiological limits, where required
- Packaging format
- Batch traceability
- Certificate of analysis requirements
- Change-control procedures
A complete specification helps protect manufacturing consistency and reduces the risk of performance variation between batches.
A product name can help begin a technical discussion, but it cannot replace application testing.
Two materials with similar names or viscosity labels may differ in:
- Substitution chemistry
- Molecular-weight distribution
- Particle size
- Surface treatment
- Moisture level
- Hydration rate
- Gel temperature
- Batch consistency
- Quality-control parameters
This is especially important when replacing a current supplier's product. A successful replacement should be based on both material specifications and finished-product performance.
For construction applications, the benchmark should be the mortar's workability, water retention, open time, slip resistance, and adhesion.
For personal-care applications, the benchmark should be viscosity, clarity, stability, foam behavior, and sensory performance.
For pharmaceutical applications, the benchmark should include validated product quality and dissolution performance.
HPMC E and HPMC K differ mainly in their substitution chemistry. HPMC E is commonly associated with substitution type 2910, while HPMC K is commonly associated with substitution type 2208. These differences can affect hydration, hydrophilicity, film formation, gel behavior, and suitability for specific formulation goals.
However, there is no universally "better" choice between HPMC E and HPMC K. The right material depends on the application, viscosity requirement, processing method, formula composition, and required performance of the finished product.
Shandong Shengda New Material Co., Ltd. provides building-grade and daily-chemical-grade cellulose ether solutions, including HPMC, HEMC, and HEC. Share your application type, formulation requirements, current benchmark, and target performance to identify a suitable grade and establish an effective evaluation plan.
HPMC E is commonly associated with hypromellose substitution type 2910. However, product equivalency should always be confirmed through the supplier's technical data sheet, certificate of analysis, and application testing.
HPMC K is commonly associated with hypromellose substitution type 2208. The K label does not define every property, such as viscosity, particle size, moisture content, or suitability for a particular formula.
K-type HPMC is frequently evaluated for hydrophilic sustained-release matrix systems, especially at higher viscosity levels. The final selection depends on active-ingredient properties, dosage, polymer concentration, tablet design, and the required dissolution profile.
Not automatically. Even when two products have similar nominal viscosity, their substitution chemistry and hydration behavior may differ. A controlled laboratory comparison is recommended before replacement.
The suitable grade is determined by the target water retention, open time, workability, anti-slip performance, tensile adhesion, and compatibility with the full cementitious formula. The E or K letter is usually not the primary selection criterion for tile adhesive.
HPMC should be dispersed using a controlled mixing procedure to avoid lump formation. Add the powder gradually under suitable agitation, follow the recommended hydration method, and allow enough time for complete viscosity development.
No. Higher viscosity may improve certain properties, such as water retention or gel strength, but it can also affect mixing, workability, processing time, and final texture. The best viscosity is the one that meets the specific performance target at an efficient dosage.
1. Kima Chemical. "What Is the Difference Between HPMC E and K?"
[https://www.kimacellulose.com/what-is-the-difference-between-hpmc-e-and-k.html] [kimacellulose]
2. United States Pharmacopeia. "Hypromellose Monograph."
[http://www.uspbpep.com/usp29/v29240/usp29nf24s0_m39215.html] [uspbpep]
3. Vlad, R. A., et al. "Hydroxypropyl Methylcellulose—A Key Excipient in Pharmaceutical Formulations." *Pharmaceutics*, 2025.
[https://pmc.ncbi.nlm.nih.gov/articles/PMC12196896/] [pmc.ncbi.nlm.nih]
4. Ashland. "Hydrodynamic Robustness of Hypromellose and Methylcellulose."
[https://www.ashland.com/file_source/Ashland/links/PTR_069-1_CR_Benecel_MC_and_HPMC.pdf] [ashland]
5. Colorcon. "Using Hypromellose (HPMC) in Matrix Tablets for Controlled Release."
[https://www.colorcon.com/education-insights/using-hypromellose-hpmc-in-matrix-tablets-for-controlled-release] [colorcon]
6. Ashland. "Benecel HPMC: Beyond Thickening."
[https://www.ashland.com/industries/personal-and-home-care/benecel-hpmc-beyond-thickening] [ashland]
