Views: 222 Author: Shengda Publish Time: 2026-05-05 Origin: Site
When installing large-format porcelain tiles—particularly those exceeding 600mm or 24 inches on any side—the selection of cellulose ether additives in tile adhesive formulations becomes a critical decision that directly impacts slip resistance, bond strength, and installation success. As a manufacturer specializing in construction-grade cellulose ethers at Shandong Shengda New Material Co., Ltd., we've witnessed firsthand how Hydroxypropyl Methyl Cellulose (HPMC) and Hydroxyethyl Methyl Cellulose (HEMC) perform differently under the demanding conditions of large-format tile installations. This comprehensive comparison will help contractors, tile adhesive formulators, and construction professionals make informed decisions based on real-world performance data and industry standards. [quantumgroupni]

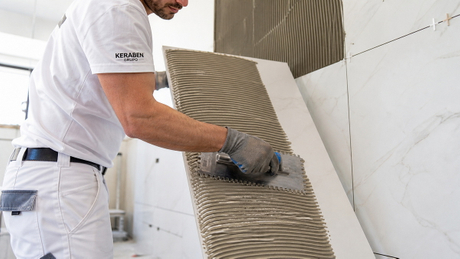

Large-format porcelain tiles present unique installation challenges that differentiate them from standard-sized tiles. These tiles cannot bridge substrate imperfections, require at least 90% mortar contact (compared to 80% for standard tiles), and demand superior slip resistance during the critical curing period. Cellulose ethers serve as the rheological backbone of modern tile adhesive formulations, controlling water retention, workability, open time, and most critically, slip resistance on vertical surfaces. [mhec-hpmc]
The importance of selecting the right cellulose ether intensifies when working with large-format tiles because any downward movement or sagging during installation becomes immediately visible and can compromise the entire installation. Both HPMC and HEMC modify the thixotropic properties of tile adhesives, but their performance profiles differ significantly in ways that matter for large-format applications. [hpmc]

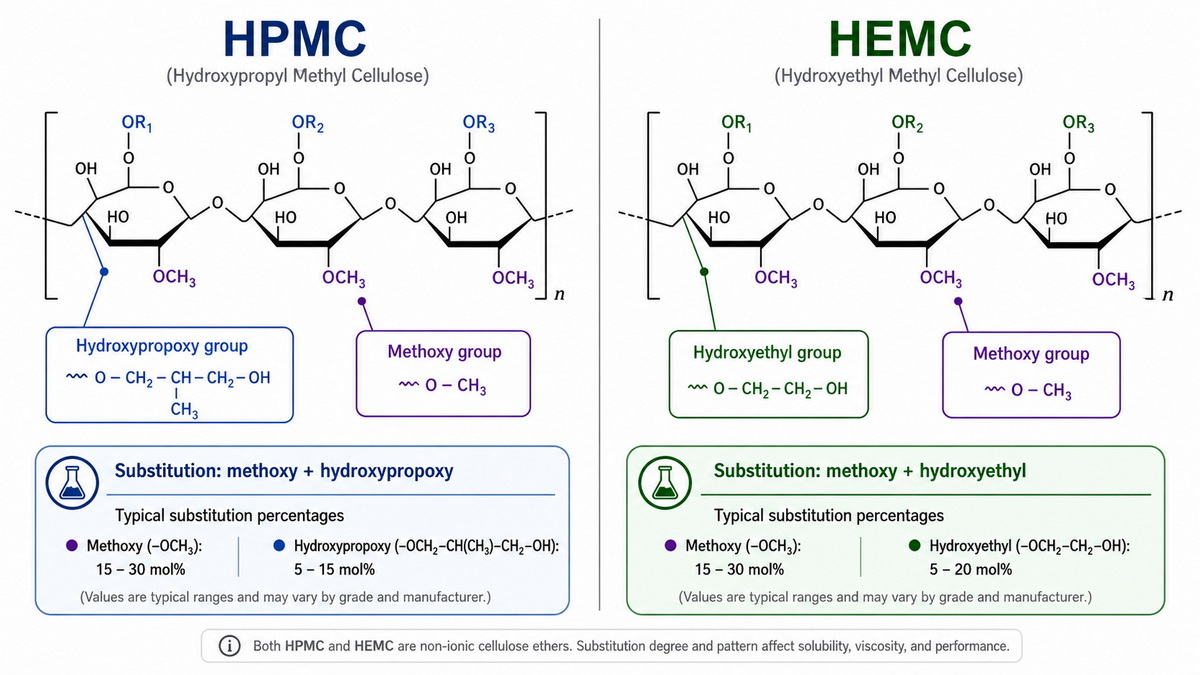

HPMC contains hydroxypropoxy groups (4.0-12.0% by weight) and methoxy substitutions that create its distinctive performance characteristics. HEMC, conversely, incorporates hydroxyethyl groups instead of hydroxypropyl groups, resulting in different solubility behavior and thermal gelation properties. [wotaichem]
This structural difference manifests in several practical ways. HEMC demonstrates faster cold-water wetting-out compared to HPMC, which often requires surface treatment for rapid dissolution. For contractors working in variable temperature conditions, this difference in solubility directly affects mixing efficiency and batch-to-batch consistency. [actabiotechnology]
The thermal gelation temperature represents a critical performance threshold. HPMC typically gels at 75-90°C, while HEMC gels at the lower range of 65-75°C. However, HPMC exhibits superior thermal stability under extended high-temperature exposure, maintaining its rheological properties better than HEMC when ambient temperatures exceed 35°C. [hpmcsupplier]
In practical terms, when installing large-format tiles in hot climates or during summer construction, HPMC maintains more consistent viscosity and sag resistance over extended periods. This becomes particularly important for large-format tiles where the adhesive must support significantly more weight per tile. [hpmcsupplier]
Both HPMC and HEMC achieve exceptional water retention values of 96-99% when tested by standard filter paper methods. This high water retention ensures complete cement hydration even on highly absorbent substrates or in warm, dry conditions. However, HEMC demonstrates marginally superior water retention when used at equivalent dosages to HPMC. [hpmcproducer]
For large-format porcelain tiles, which are typically low-porosity or fully vitrified materials, this water retention difference becomes critical. The adhesive must retain sufficient moisture to develop full bond strength without relying on moisture absorption into the tile body. In our formulation testing, HEMC at 0.3% dosage provided equivalent water retention to HPMC at 0.35% dosage, offering potential cost optimization. [actabiotechnology]
Slip resistance represents the single most critical performance parameter for large-format tile installation on vertical surfaces. When tiles exceed 900mm in length, gravitational forces create substantial downward pressure on the fresh adhesive. Both HPMC and HEMC improve slip resistance by enhancing the thixotropic properties of the mortar, but their mechanisms differ slightly. [mhec-hpmc]
HEMC introduces finer air bubbles compared to HPMC, creating a more uniform microstructure within the adhesive matrix. This finer bubble structure contributes to improved sag resistance and better short-term shear strength. In comparative testing, tile adhesives formulated with HEMC at 40,000-60,000 mPa·s viscosity demonstrated superior vertical slip resistance compared to equivalent-viscosity HPMC formulations. [kimachemical]
However, specialized "large-format" HPMC grades engineered specifically for high slip resistance (such as modified HPMC at 49,125 mPa·s) can match or exceed standard HEMC performance. The key differentiator lies in selecting the appropriate viscosity grade rather than the cellulose ether type alone. [tenessy]
Workability directly impacts installation efficiency and mortar coverage uniformity. HEMC provides a slightly smoother trowel feel and better lubrication effect compared to HPMC at equivalent viscosity grades. This enhanced workability proves particularly valuable when using the large-notch trowels (1/2" x 1/2" or 3/4" x 3/4" square notch) required for large-format tile installation. [cntenaisi]
The improved troweling characteristics of HEMC allow installers to achieve the required 95% mortar coverage more consistently, especially when working with back-buttering techniques necessary for large-format installations. This translates to reduced installer fatigue during extended installation sessions and more consistent bond quality across the entire tiled surface. [ceramictilefoundation]
Open time—the period during which tiles can be placed and achieve adequate bond strength—critically affects installation efficiency. For large-format tiles, which require careful positioning and leveling, extended open time without compromising slip resistance becomes essential. [cntenaisi]
Both HPMC and HEMC extend open time compared to non-modified mortars. HEMC demonstrates marginally longer open time at equivalent dosages, particularly in ambient temperatures between 20-30°C. However, at temperatures exceeding 30°C or relative humidity below 40%, the performance gap narrows, and increasing cellulose ether dosage by 0.05% becomes more important than the type selected. [wotaichem]
For C1 interior tile adhesive in temperate climates, HPMC at 25,000-40,000 mPa·s provides reliable, cost-effective performance. This viscosity range adequately supports tiles up to 600mm in standard installation conditions. [actabiotechnology]
For C2 and C2TE products (polymer-modified adhesives with improved characteristics) and large-format tile applications, both HPMC and HEMC in the 40,000-75,000 mPa·s range deliver optimal performance. Ultra-high viscosity grades (80,000+ mPa·s) enable reduced dosage rates while maintaining water retention and open time. [sidleychem]

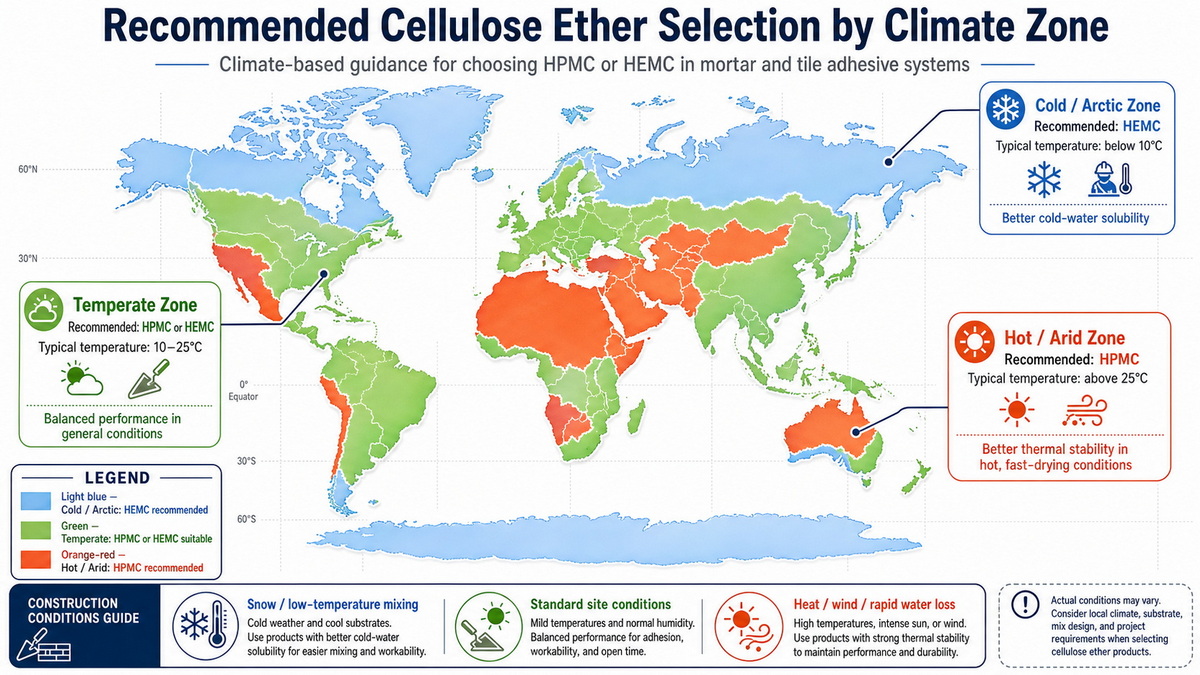

Cold-weather performance (≤10°C): HEMC significantly outperforms HPMC due to faster cold-water dissolution without requiring surface treatment. For projects in continental climates with cold winters, HEMC formulations reduce mixing complications and ensure consistent batch quality. [actabiotechnology]

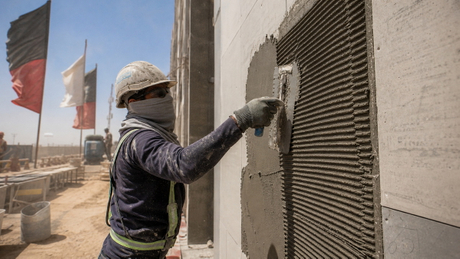

Hot-climate performance (≥35°C): HPMC's superior thermal stability makes it preferable for installations in hot, arid environments or summer construction in subtropical regions. HEMC remains suitable for hot climates when using higher viscosity grades or increased dosage rates to compensate for accelerated water loss. [wotaichem]
Variable climate applications: For exterior cladding, large-format tile facades, or any application experiencing wide temperature fluctuations, HEMC in the 60,000-75,000 mPa·s range provides the most consistent year-round performance. [actabiotechnology]
| Performance Parameter | HPMC (40,000 mPa·s) | HEMC (40,000 mPa·s) | Significance for Large-Format Tiles |
|---|---|---|---|
| Water Retention | 96-98% | 97-99% | Critical for low-porosity porcelain actabiotechnology |
| Cold Water Solubility | Moderate (may need treatment) | Fast (no treatment required) | Affects batch consistency actabiotechnology |
| Thermal Gelation | 75-90°C | 65-75°C | Impacts hot-climate performance actabiotechnology |
| Slip Resistance | Excellent (with specialized grades) | Superior (standard grades) | Essential for vertical installation wotaichem |
| Workability/Trowel Feel | Smooth | Very smooth | Affects coverage uniformity actabiotechnology |
| Open Time Extension | Excellent | Excellent to superior | Enables precise positioning wotaichem |
| Cost Effectiveness | Standard reference | 10-15% lower dosage required | Reduces formulation costs hpmcproducer |
| Sag Resistance | High | Very high | Critical for tiles >600mm wotaichem |
In a recent large-format installation project involving 1200mm x 600mm porcelain slabs on interior feature walls, we compared two tile adhesive formulations at our testing facility. Formulation A used HPMC at 0.35% dosage (50,000 mPa·s grade), while Formulation B employed HEMC at 0.30% dosage (50,000 mPa·s grade).
Ambient temperature was maintained at 28°C with 50% relative humidity, representing typical summer construction conditions. Both formulations achieved the required 95% mortar coverage using a 3/4" x 3/4" square-notch trowel. [eurotilestore]
Slip resistance testing: Tiles were positioned on vertical test walls and monitored for 60 minutes. The HEMC formulation showed zero measurable slip (0.0mm) throughout the test period. The HPMC formulation demonstrated 0.3mm slip after 45 minutes, still within acceptable tolerances but measurably inferior to HEMC. [wotaichem]
Open time comparison: Both formulations maintained adequate bond strength for tile placement up to 25 minutes after mortar application. The HEMC formulation extended usable open time to 28 minutes before bond strength degradation.
Workability assessment: Installers reported noticeably smoother troweling with the HEMC formulation, reducing physical effort during the extended installation session. The finer air bubble structure in the HEMC mortar also contributed to better coverage uniformity.
HEMC's superior water retention and thickening properties enable lower dosage rates compared to HPMC while achieving equivalent performance. Typical formulations require 0.25-0.30% HEMC compared to 0.30-0.40% HPMC for similar performance profiles in large-format tile adhesives. [hpmcproducer]
For a standard 25kg bag of tile adhesive, this translates to a cellulose ether savings of approximately 12.5-25g per bag. Across large commercial projects consuming hundreds of tons of adhesive, these savings compound significantly without compromising performance. [hpmcproducer]
Both HPMC and HEMC contribute to enhanced bond strength development through improved cement hydration. Laboratory testing shows that properly formulated adhesives with either cellulose ether achieve tensile bond strength exceeding 1.3 MPa, compared to 0.65 MPa for non-modified formulations. [tenessy]
The enhanced flexibility contribution of cellulose ethers also improves crack resistance in dynamic environments such as underfloor heating systems, exterior facades experiencing thermal cycling, and wet zones with moisture fluctuation. For large-format installations, this long-term durability proves essential for preventing grout joint cracking and tile debonding. [mhec-hpmc]
Large-format tile installations must comply with ANSI A118.15 standards for improved performance mortars. These standards mandate enhanced bond strength, extended open time, and superior sag resistance compared to standard ANSI A118.4 formulations. [custombuildingproducts]
Cellulose ether selection directly impacts compliance with these standards. Both HPMC and HEMC enable formulations to meet ANSI A118.15 requirements when used at appropriate viscosity grades and dosages. The key lies in matching the cellulose ether properties to the specific performance requirements and installation conditions. [eurotilestore]
Large-format tiles require substrates meeting ANSI flatness standards of 1/8" in 10 feet and 1/16" in 24 inches. When substrates exceed these tolerances, medium-bed mortars capable of 3/32" to 3/4" thickness become necessary. [tileclub]
Both HPMC and HEMC function effectively in medium-bed formulations, though higher viscosity grades (60,000-100,000 mPa·s) optimize performance in thick-bed applications. The cellulose ether prevents excessive mortar slump while maintaining pumpability and trowelability. [kimachemical]
For interior installations in climate-controlled environments using large-format tiles up to 900mm, HPMC at 40,000 mPa·s provides optimal cost-performance balance. The thermal stability advantages of HPMC prove less critical in temperature-stable interiors. [actabiotechnology]
For demanding applications including exterior facades, swimming pool surrounds, and shower installations with large-format tiles, HEMC at 50,000-75,000 mPa·s delivers superior performance. The enhanced water retention, slip resistance, and workability of HEMC justify the marginal cost premium in critical applications. [actabiotechnology]
For projects in continental climates experiencing both cold winters and hot summers, HEMC at 60,000 mPa·s provides the most versatile performance profile. The faster cold-water wetting compensates for winter mixing challenges, while appropriate dosage adjustments maintain performance during summer heat. [actabiotechnology]
For porcelain slabs exceeding 1000mm in any dimension, specialized high-viscosity HEMC (80,000+ mPa·s) or purpose-engineered large-format HPMC grades offer the superior slip resistance necessary to support extreme tile weights during curing. These applications demand maximum performance regardless of cost considerations. [tenessy]
Both HPMC and HEMC interact synergistically with RDP (redispersible polymer powders) to enhance adhesion, flexibility, and water resistance. Research indicates that cellulose ether selection affects RDP film formation and final adhesion strength in complex ways dependent on both additives' chemical structures. [scribd]
In formulations for large-format tiles requiring both high slip resistance and enhanced flexibility (such as installations over plywood substrates or underfloor heating), the HEMC + RDP combination demonstrates marginally superior performance compared to HPMC + RDP at equivalent total polymer loading. [scribd]
HEMC produces finer, more uniformly distributed air bubbles compared to HPMC. While this contributes to improved slip resistance and workability, it also requires attention to total air content in the hardened mortar. Excessive air entrainment can reduce compressive strength and bond strength if not properly controlled through defoamer selection and mixing protocols. [wotaichem]
Both HPMC and HEMC derive from renewable cellulose resources (typically cotton linters or wood pulp), contributing to the sustainability profile of modern tile adhesive formulations. The ability to reduce dosage rates with HEMC translates to lower resource consumption across the product lifecycle. [hpmcproducer]
Additionally, improved water retention from both cellulose ethers reduces the carbon footprint associated with installation failures and rework. Large-format tile installations represent significant material and labor investments; adhesive failures necessitate complete reinstallation, multiplying environmental impacts. The enhanced reliability provided by properly formulated HPMC or HEMC adhesives reduces this waste factor significantly.
For most large-format porcelain tile applications, HEMC at 40,000-60,000 mPa·s viscosity grades offers superior slip resistance, workability, and cost-effectiveness compared to equivalent-viscosity HPMC. The faster cold-water wetting, enhanced sag resistance, and reduced dosage requirements of HEMC provide measurable performance and economic advantages, particularly in demanding installations exceeding 600mm tile dimensions. [wotaichem]
However, HPMC remains preferable for applications requiring maximum thermal stability in sustained high-temperature environments (>35°C) or when using specialized large-format grades engineered for specific performance characteristics. The slightly higher cost of these specialized HPMC grades becomes justified in critical applications where installation failure risks are unacceptable. [hpmcsupplier]
Ultimately, the optimal selection depends on project-specific factors: climate conditions, tile dimensions, substrate characteristics, application type (interior/exterior, dry/wet), and cost constraints. At Shandong Shengda New Material Co., Ltd., we recommend comprehensive formulation testing under actual installation conditions to validate cellulose ether selection before large-scale deployment. Both HPMC and HEMC represent proven, reliable technologies—the key lies in matching their distinctive performance profiles to your specific application requirements.
A: Not directly. While HEMC and HPMC serve similar functions, HEMC typically requires 10-15% lower dosage to achieve equivalent performance. Additionally, HEMC's different thermal gelation temperature and faster cold-water wetting may require adjustments to mixing protocols, defoamer selection, and other formulation components. We recommend conducting laboratory trials before full-scale reformulation. [hpmcproducer]
A: For tiles exceeding 900mm in any dimension, cellulose ethers in the 50,000-75,000 mPa·s range provide optimal slip resistance and sag resistance. Ultra-large format applications (>1200mm) may benefit from 80,000+ mPa·s grades or specialized large-format formulations designed specifically for extreme tile weights. [kimachemical]
A: HEMC performs better in cold conditions (≤10°C) due to faster cold-water dissolution. HPMC demonstrates superior thermal stability in sustained high temperatures (>35°C). In moderate temperature ranges (15-30°C), performance differences are minimal, with HEMC showing marginal advantages in slip resistance and workability. [hpmcsupplier]
A: When used at appropriate dosages and viscosity grades, both HPMC and HEMC enable tile adhesives to achieve superior bond strength (>1.3 MPa) compared to non-modified formulations (0.65 MPa). The cellulose ether type has less impact on final bond strength than proper cement hydration, which both additives facilitate through excellent water retention. [tenessy]
A: Viscosity affects multiple performance parameters including water retention efficiency, open time extension, mortar consistency, pumpability, and sag resistance. Higher viscosity grades enable lower dosage rates while maintaining water retention, but may reduce workability if dosage is not optimized. The optimal viscosity grade balances all performance requirements for the specific application rather than maximizing any single parameter. [sidleychem]
1. Hehui Chemical. "HPMC Custom Grade For Tile Adhesive - Application Guide." 2025. https://www.mhec-hpmc.com/application/tile-adhesive-application.html
2. Scribd Document Archive. "Evaluation of Various Cellulose Ethers Performance in Ceramic Tile Adhesive Mortars." December 2025.
3. HPMC.com. "Why is it Important to Add HPMC to Tile Adhesive?" Technical Resources. https://www.hpmc.com/company-news/why-is-it-important-to-add-hpmc-to-tile-adhesive.html
4. Wotai Chemical. "7 Key Differences of HPMC and HEMC." April 2024. https://wotaichem.com/difference-between-hpmc-and-hemc/
5. Quantum Group NI. "How to Lay Large Format Tiles: A Complete Guide for Floors & Walls." February 2026. https://quantumgroupni.com/how-to-lay-large-format-tiles-a-complete-guide-for-floors-walls/
6. Acta Biotechnology. "Tile Adhesive Additives (HPMC & HEMC) for High-Performance Mortar." April 2026. https://www.actabiotechnology.com/applications-of-cellulose-stabilizers/tile-adhesive-additive/
7. Tenessy. "Mechanism of Action of HPMC in Tile Adhesives and Its Effect on Bonding Performance Enhancement." Technical Documentation. https://tenessy.com/mechanism-of-action-of-hpmc-in-tile-adhesives-and-its-effect-on-bonding-performance-enhancement/
8. Sidley Chemical. "Tile Adhesive Formulation Analysis: Cellulose Ether Selection." March 2026. https://sidleychem.com/tile-adhesive-formulation/
9. Ceramic Tile Foundation. "Getting the Coverage You Need Under Large Wall Tile." April 2022. https://www.ceramictilefoundation.org/blog/getting-coverage-needed-under-large-wall-tile
10. HPMC Supplier. "HEMC vs. HPMC for Construction Applications: Which One is Better?" December 2024. https://www.hpmcsupplier.com/news/hemc-vs-hpmc-for-construction-applications-which-one-is-better/
11. Kima Chemical. "Typical Grade of Cellulose Ethers - Technical Specifications." Product Documentation. https://www.kimachemical.com/uploads/7f401d17.pdf
12. Euro Tile Store. "Large Format Tile Mortar: Flawless 2024 Guide." October 2025. https://eurotilestore.com/large-format-tile-mortar-guide/
13. Custom Building Products. "Installing Large Format Tile - Frequently Asked Questions." Technical FAQ. https://www.custombuildingproducts.com/wp-content/uploads/2021/08/lft_faq.pdf
14. Daltile. "How To Install Large Format Tile." Installation Guidelines. https://www.daltile.com/how-to/how-to-install-tile/how-to-install-large-format-tile
15. Tile Club. "Large Format Tile Installation Guide." March 2020. https://www.tileclub.com/blogs/news/large-format-tile-installation-guide
