● What Is HPMC Viscosity and Why It Matters
● Typical HPMC Viscosity Ranges
● HPMC Viscosity in Construction Applications
>> Cement-based plasters and renders
>> High-viscosity mortars and putty
● HPMC Viscosity in Pharmaceutical Formulations
>> Hard capsules and other dosage forms
● HPMC Viscosity in Food and Beverage Applications
● Quick HPMC Viscosity Selection Table
● How Viscosity Influences Key Performance Parameters
● Step-by-Step Guide: How to Choose the Right HPMC Viscosity
● Common Mistakes in HPMC Viscosity Selection
● Case Example: Optimizing Tile Adhesive with HPMC
● Why Partner with Shandong Shengda for HPMC, HEMC, and HEC
● Clear Call to Action: Get Your Tailored Cellulose Ether Solution
● FAQ: HPMC Viscosity for Different Applications
>> 1. How do I know if my current HPMC viscosity is too high?
>> 2. Can I switch from high to medium viscosity just by increasing dosage?
>> 3. Do construction and pharmaceutical HPMC grades use the same viscosity ranges?
>> 4. How does temperature affect HPMC viscosity performance on site?
>> 5. Can HEMC or HEC replace HPMC at the same viscosity?
Hydroxypropyl methyl cellulose (HPMC) viscosity directly controls water retention, workability, adhesion, and final performance in construction, pharmaceutical, and food formulations. Choosing the wrong viscosity grade almost always leads to issues such as poor open time, sagging, or unstable texture, so a clear, application-driven selection method is essential.
HPMC viscosity is a measure of how thick the polymer solution becomes when dissolved in water, usually expressed in mPa·s (or cP) at a specified concentration and temperature. In practical terms, higher viscosity grades build thicker, more elastic mixes, while lower viscosities provide better flow and leveling.
Key functional impacts of viscosity include:
- Water retention in cement and gypsum systems
- Open time and workability of mortars and tile adhesives
- Sag resistance and slip control on vertical surfaces
- Film-forming and controlled-release behavior in tablets
- Texture, mouthfeel, and stability in food systems
For construction, pharmaceutical, and food formulators, viscosity is the first parameter to define before fine-tuning substitution type, particle size, or setting modifiers.
HPMC grades are generally grouped into low, medium, and high viscosity ranges, each fitting different types of products.
- Low viscosity: about 1,000–10,000 mPa·s
- Medium viscosity: about 10,000–50,000 mPa·s
- High viscosity: about 50,000–200,000+ mPa·s
These broad bands are then customized into grade codes and exact viscosity values by manufacturers like Shandong Shengda New Material Co., Ltd., whose product lines cover approximately 400–200,000 mPa·s for building and daily-chemical applications.

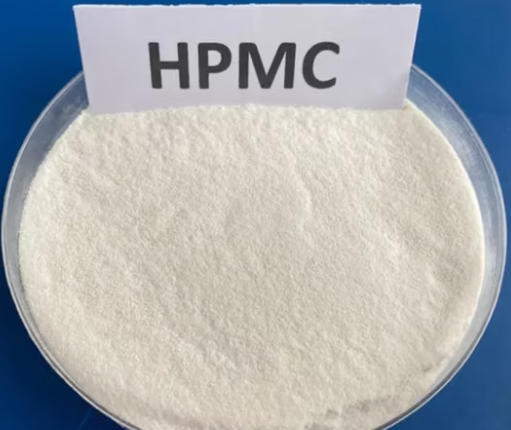

In dry-mix mortars, HPMC is the core rheology and water-retention modifier, so viscosity selection has a direct effect on mixing, application, and final strength.
For cement-based tile adhesives, a medium to high viscosity HPMC is generally preferred to balance water retention, anti-slip performance, and trowelability. A typical recommended range is about 20,000–50,000 mPa·s, which delivers good adhesion and sufficient open time without making the mortar too stiff.
Performance expectations with these grades:
- Strong tile wetting and bond strength
- Good slip resistance on vertical walls
- Improved water retention to optimize cement hydration
Cement-based plasters, wall putties, and renders usually work best with low to medium viscosity HPMC, roughly 4,000–25,000 mPa·s, so that masons can spread the mortar smoothly and avoid heavy drag. Such viscosities help reduce sagging, improve cohesion, and give a more uniform surface finish.
Self-leveling underlayments and screeds require low viscosity for excellent flow, surface leveling, and air release. For these products, HPMC viscosity is usually kept around 1,000–5,000 mPa·s, just enough to stabilize the system without destroying its self-leveling behavior.
At the high end (100,000 mPa·s and above), HPMC delivers maximum water retention and thickening, supporting heavy-duty mortars and putty powders where crack resistance and long open time are critical. These grades are particularly useful in hot, dry climates or on very absorbent substrates.

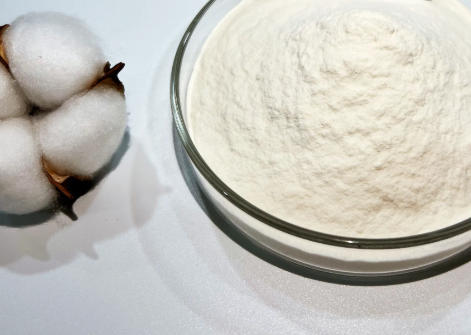

In pharmaceuticals, HPMC viscosity is strongly linked to drug release, disintegration, and film properties.
For matrix controlled-release tablets, formulators usually choose high viscosity HPMC, typically 50,000–100,000 mPa·s or higher, to build a strong gel layer that slows penetration of fluids and diffusion of the active ingredient. The higher the viscosity, the more robust the gel and the longer the release profile.
For tablet and pellet film coatings, low-to-medium viscosity HPMC (about 5,000–15,000 mPa·s) provides optimal sprayability, fast dissolution, and smooth film formation. These viscosities improve coating efficiency while avoiding spray-gun clogging or orange-peel defects.
HPMC used as a capsule shell material or binder often sits in the medium viscosity window of about 10,000–25,000 mPa·s, allowing reliable film formation and capsule strength without excessively long disintegration times. Lower viscosity grades can be selected for fast-dissolving or orally disintegrating tablets, where rapid hydration is required.
Food-grade HPMC is widely employed as a thickener, stabilizer, and emulsifier in bakery, dairy, beverage, and processed foods.
Typical ranges by segment:
- Bakery products: medium viscosity, about 10,000–20,000 mPa·s, to improve dough elasticity, gas-holding, and moisture retention.
- Dairy and beverages: low viscosity, about 1,000–10,000 mPa·s, to enhance texture and stability without making the product too gummy.
- Processed foods and sauces: medium to high viscosity, around 20,000–50,000 mPa·s, for consistent thickness and prevention of phase separation.
Because HPMC is non-ionic and tolerant to salts and pH changes within typical food ranges, viscosity control becomes the main lever for achieving the desired mouthfeel and stability.
Below is an overview of commonly recommended HPMC viscosity ranges for major applications.
| Application | Typical viscosity range (mPa·s) | Key performance focus |
|---|---|---|
| Tile adhesives | 20,000–50,000 | Water retention, slip resistance, open time |
| Cement-based plasters/renders | 4,000–25,000 | Workability, cohesion, reduced sagging |
| Self-leveling compounds | 1,000–5,000 | Flowability, leveling, surface smoothness |
| High-performance mortars/putty | 100,000+ | Maximum water retention, crack resistance |
| Controlled-release tablets | 50,000–100,000+ | Sustained drug release, robust gel layer |
| Film coatings (tablets/pellets) | 5,000–15,000 | Sprayability, smooth film, fast dissolution |
| Capsules / general pharma binder | 10,000–25,000 | Film strength, balanced disintegration |
| Bakery products | 10,000–20,000 | Dough elasticity, volume, moisture retention |
| Dairy and beverages | 1,000–10,000 | Mouthfeel, suspension stability |
| Processed foods / sauces | 20,000–50,000 | Thickening, emulsification, stability |
Understanding how viscosity affects each performance parameter helps you fine-tune grades instead of relying only on trial and error.
1. Water retention
- Higher viscosity HPMC creates a denser polymer network that slows water evaporation and absorption into substrates.
- This boosts hydration of cement and gypsum, improving strength and reducing shrinkage cracks.
2. Workability and trowel feel
- Medium viscosity grades often give the best balance between lubricity and body in mortars.
- Too high a viscosity can make mixes sticky and hard to spread, while too low leads to segregation and bleeding.
3. Sag and slip resistance
- In vertical applications like tile setting and wall putty, higher viscosities help prevent materials from sliding or slumping.
- However, this must be balanced with ease of positioning and adjustment of tiles.
4. Flow and leveling
- Low viscosity HPMC supports high flow, making it ideal for self-leveling compounds and some coatings.
- Excessive viscosity can trap air and cause surface defects such as pinholes or trowel marks.
5. Drug release and film behavior
- In tablets, increasing HPMC viscosity lengthens disintegration time and prolongs drug release by forming a stronger gel matrix.
- For coatings, lower viscosities ensure thin, uniform films with quick dissolution in the gastrointestinal tract.
6. Food texture and stability
- In foods, higher viscosities translate into thicker textures and more stable suspensions or emulsions.
- Low viscosities are suitable for beverages or light sauces, where smooth drinking or pouring behavior is essential.
You can follow this simple, repeatable process to select the right HPMC viscosity for any new product.
1. Define the end use and critical properties
- Clarify whether your priority is water retention, workability, open time, drug release profile, or texture.
- Document boundary conditions such as temperature, humidity, substrate porosity, or release target.
2. Map to an initial viscosity range
- Use the selection table above to pick a starting window (for example, 20,000–40,000 mPa·s for tile adhesive or 60,000–100,000 mPa·s for controlled-release tablets).
- Consider whether your market conditions (hot or dry versus cool or humid) justify shifting toward the higher or lower side of the range.
3. Run small-scale trials
- Prepare laboratory batches using two to three viscosity grades within the chosen window.
- Evaluate mixing time, application behavior, setting or release performance, and final mechanical or sensory properties.
4. Optimize dosage and co-additives
- Adjust HPMC dosage in combination with other additives such as redispersible polymer powder, starch ether, air-entraining agents, or plasticizers.
- Often, a slightly lower viscosity at a well-optimized dosage outperforms a very high viscosity at minimal dosage.
5. Validate under field or pilot-scale conditions
- Test your chosen viscosity grade under realistic job-site or production conditions to confirm robustness.
- Record performance data so that viscosity selection becomes part of your standard formulation knowledge base.
Avoid these frequent pitfalls when choosing HPMC viscosity.
- Assuming “the higher, the better”
Very high viscosities can create overly sticky, difficult-to-apply mixes and excessively slow disintegration or release.
- Ignoring temperature and climate
Hot, dry environments require stronger water retention, while cooler, humid climates may be better served by moderate viscosities.
- Focusing only on laboratory flow data
Viscosity measured at a given shear rate may not perfectly predict on-site trowel feel or in vivo tablet behavior.
- Neglecting interaction with other ingredients
Fillers, cement type, plasticizers, and other polymers can amplify or reduce the apparent viscosity of HPMC solutions.
A typical tile adhesive formulation aimed at reducing slip and improving open time might start with a mid-range construction HPMC around 30,000–40,000 mPa·s. During field trials, installers may report either too stiff a mix, which is hard to comb, or insufficient slip resistance, which guides fine adjustments either to a lower or slightly higher viscosity grade, along with dosage changes.
By iterating viscosity and dosage, producers often achieve:
- Better combing and wetting
- Extended open time of 20–30 minutes or more, depending on climate
- Reliable slip values that meet relevant performance standards when combined with suitable polymer modifiers
This shows how viscosity is not chosen in isolation, but as part of a structured formulation optimization process.
Shandong Shengda New Material Co., Ltd. is a specialized manufacturer of non-ionic cellulose ethers, focusing on research, development, production, and global technical support. The company's product portfolio covers HPMC, HEMC, HEC, and related polymers for construction, detergent, daily-chemical, and other industrial applications, with viscosity ranges broadly from about 400 to 200,000 mPa·s.
Key advantages when working with Shandong Shengda include:
- Independent R&D and advanced automatic production lines dedicated to building-grade cellulose ethers.
- Consistent quality and strict management systems for stable performance across batches.
- Application-driven technical service to help customers select and fine-tune viscosity grades for specific mortars, tablets, or food systems.
By combining broad viscosity coverage with application laboratories, Shengda supports customers in shortening development cycles and reducing trial-and-error costs.
If you are developing or upgrading tile adhesives, dry-mix mortars, tablets, coatings, or food products and are unsure which HPMC, HEMC, or HEC viscosity grade to select, now is the right time to act. Share your application details, target performance, and production conditions with Shandong Shengda New Material Co., Ltd., and you will receive a tailored viscosity recommendation, suggested dosage ranges, and technical support from laboratory testing to scale-up. Contact our team today to discuss your project and secure a reliable, high-performance cellulose ether solution that fits your specific formulation needs.
Contact us to get more information!
If your mortar feels very sticky and difficult to spread, or your tablets disintegrate too slowly, your HPMC viscosity or dosage may be too high. In this case, the polymer network is too dense, which restricts flow and slows water penetration or drug release. Adjusting to a lower viscosity grade or carefully reducing dosage can help restore balanced performance.
In some cases, a medium viscosity grade at a higher dosage can match or exceed the thickening performance of a very high viscosity grade. However, the rheology profile will not be identical, so workability, open time, and release behavior may change. Laboratory testing is always necessary before making such a substitution.
The numerical viscosity ranges can overlap, but the requirements are different. Pharmaceutical grades must also meet strict standards for purity, substitution uniformity, and regulatory compliance, while construction grades prioritize water retention, workability, and compatibility with cement or gypsum. Viscosity is only one part of the overall specification.
High temperature and low humidity increase water loss from mortars and coatings, so higher viscosity grades or slightly higher dosages are usually required to maintain open time and workability. In cooler or more humid climates, excessively high viscosity can cause mixes to feel heavy and sticky. Matching viscosity to local climate conditions improves consistency and user experience.
HEMC and HEC can offer similar thickening at comparable viscosities, but they differ in water retention, setting time influence, and salt tolerance. This means they are not always direct one-to-one replacements for HPMC. Any substitution must be validated in each specific formulation through laboratory and field trials.
